High Volume Front End Loader Bucket - HEAVY DUTY

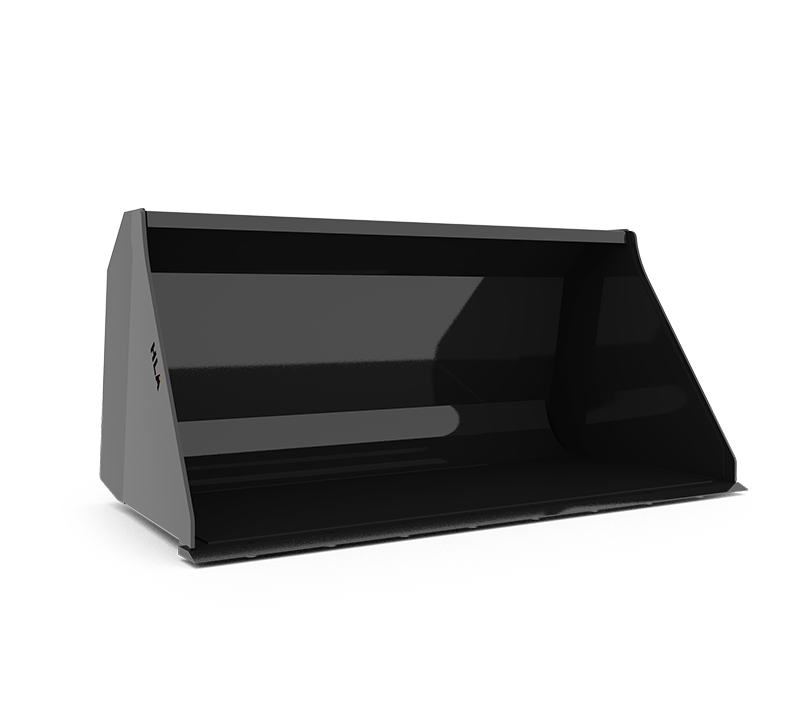

  • View the main image of the High Volume Front End Loader Bucket - HEAVY DUTY

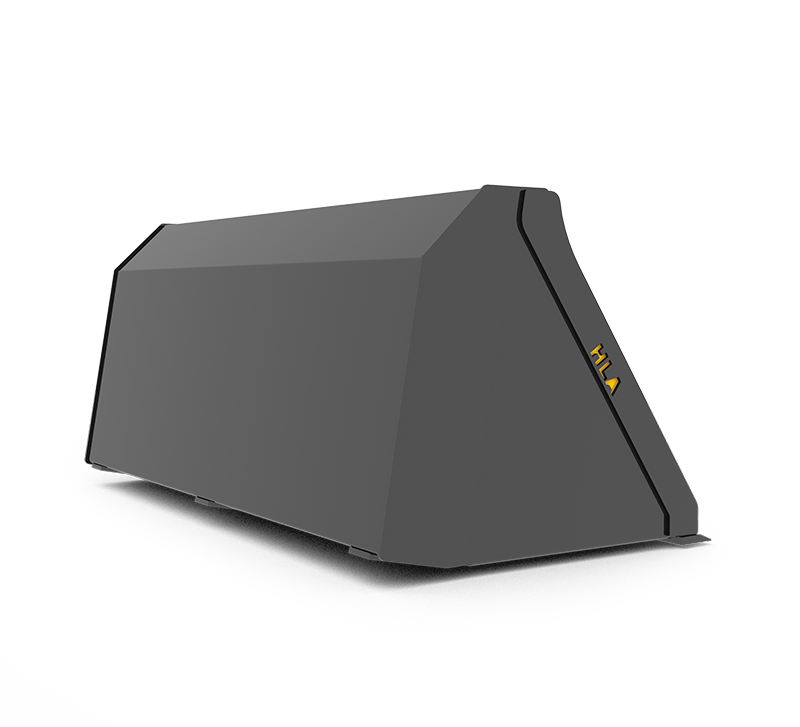

  • View the second image of the High Volume Front End Loader Bucket - HEAVY DUTY
  • View the third image of the High Volume Front End Loader Bucket - HEAVY DUTY

High Volume Front End Loader Bucket - HEAVY DUTY

  • HEAVY DUTY
  • 1/4" material, 1/4" end plates
  • 3/4 X 6 bevelled cutting edge
  • Reinforced top lip
  • 36" deep, 30" high
  • Reinforced round back and end plates for strength, easy filling & clean out
  • Flat top acts as level indicator
  • Drilled for standard bolt on cutting edge
  • Tapered end plates are self-cleaning and reduces material build-up
  • Add 2" to Inside Width column to calculate outside width of bucket
Part Number Description INSIDE WIDTH
INCHES
STRUCK CAP. - LEVELSAE HEAPED CAP. CU. FT.APPROX. WEIGHT
LBS.
MBHV60HD60" Hd Hv Material Bucket6022.727.2655
MBHV66HD66" Hd Hv Material Bucket662530695
MBHV72HD72" Hd Hv Material Bucket7227.332.9740
MBHV78HD78" Hd Hv Material Bucket7829.535.7795
MBHV84HD84" Hd Hv Material Bucket8431.838.5835
MBHV96HD96" Hd Hv Material Bucket9636.344.2935
MBHV108HD108" Hd Hv Material Bucket10840.949.91145
MBHV120HD120" Hd Hv Material Bucket12043.254.01230
346CEBOptional 346CEB 3/4 X 6 Double Bevel Bolt On Cutting Edge c/w Bolts & Nuts
348CEBOptional 348CEB 3/4 X 8 Double Bevel Bolt On Cutting Edge c/w Bolts & Nuts
346CESBOptional 346CESB 3/4 X 6 Single Bevel Serrated Bolt On Cutting Edge c/w Bolts & Nuts
RTMBKOptional RTMBK Knock On Ripper Teeth c/w Weld On Adapter & Flex Pin
