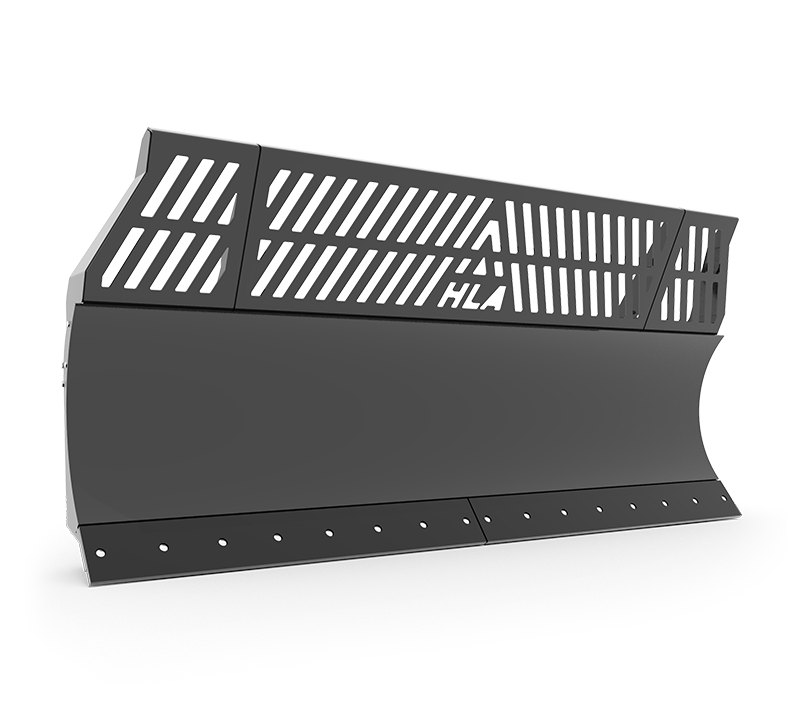

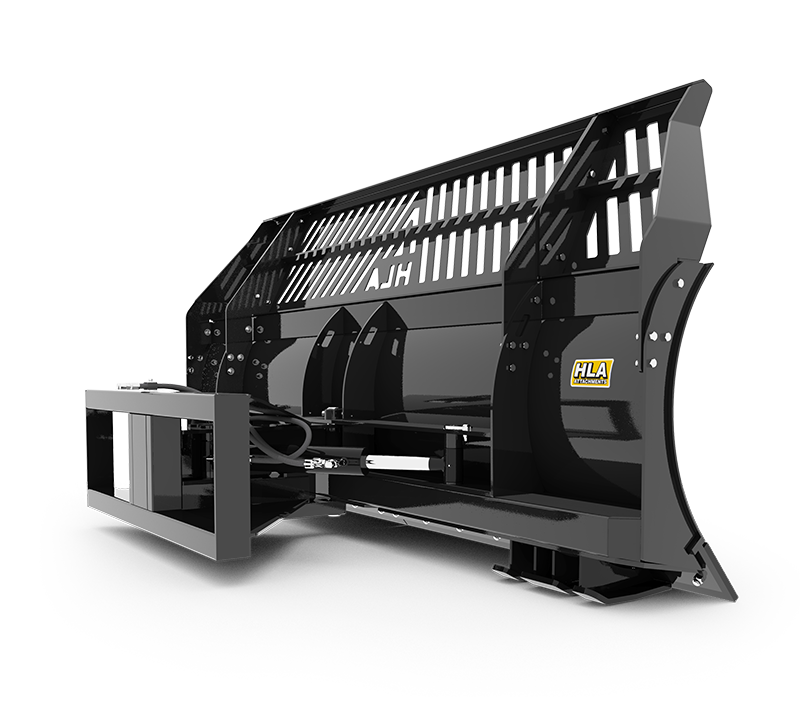

5000 Series Silage Blade - Front Wheel Assist Tractors
- For front wheel assist tractors only
- Compatible with SB5QDM Series undercarriage blade mounts.
- Heavy duty construction with two angle cylinders
- Reversible cutting edge
- Skid shoes are standard
- 58" high blade
- 34" high mouldboard
- 24" high mesh guard
- 3 x 16 cylinders with 1-1/2" diameter pins
- Available in CAT 2 or 3, three point hitch
| Part Number | Description | APPROX. WEIGHT LBS. |
|---|---|---|
| FB10 | 10' Front Silage Blade | 2170 |
| FB12 | 12' Front Silage Blade | 2535 |
| FB14 | 14' Front Silage Blade | 2765 |
| FBHPT | Optional Hydraulic Power Tilt | 165 |
| FBEP30 | Optional 30" Deep End Plates (set) | 255 |
| HK90 | Optional 90" Hose Kit c/w Flat Faced Couplers |
