Big Arm Backhoe for Skidsteer

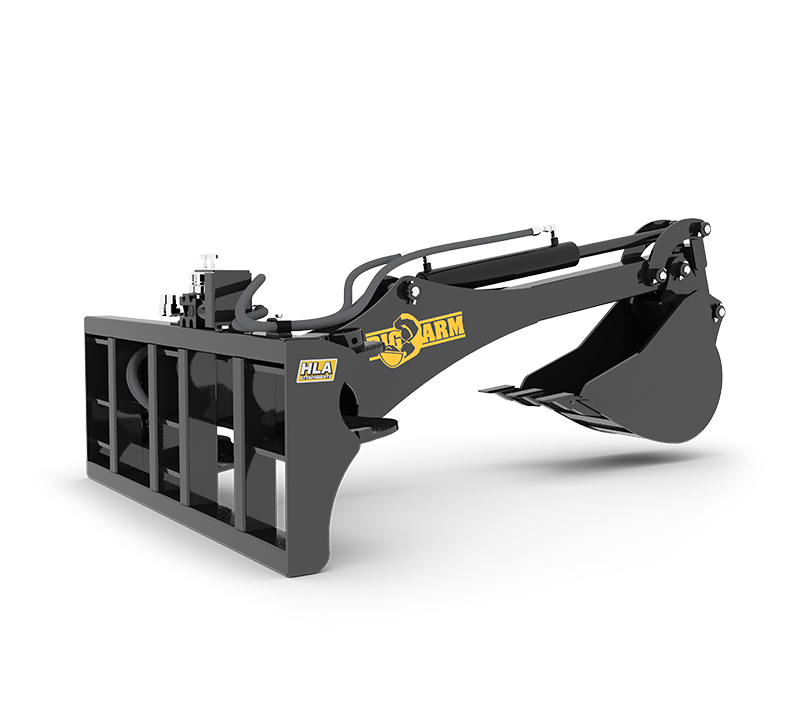

  • View the main image of the Big Arm Backhoe for Skidsteer

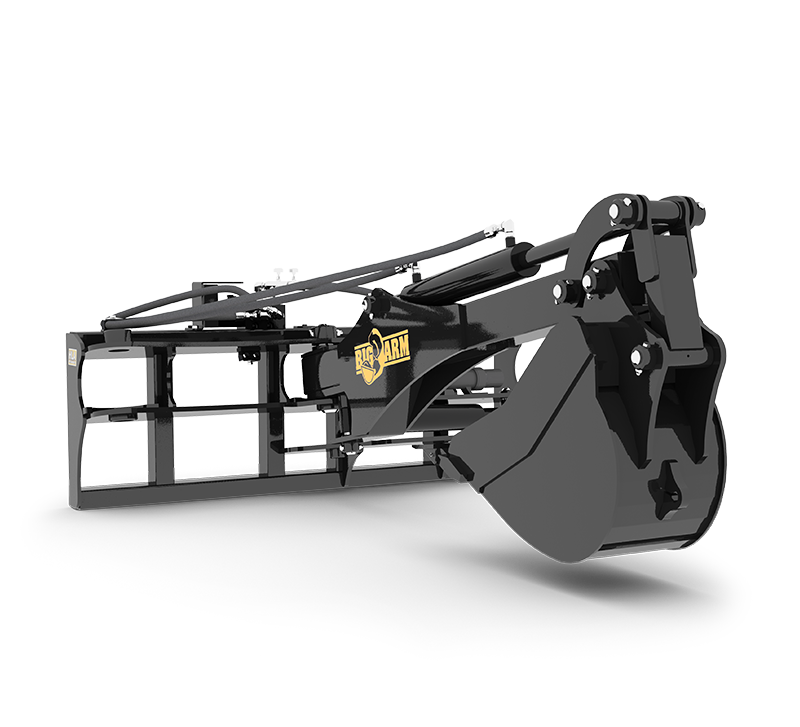

  • View the second image of the Big Arm Backhoe for Skidsteer

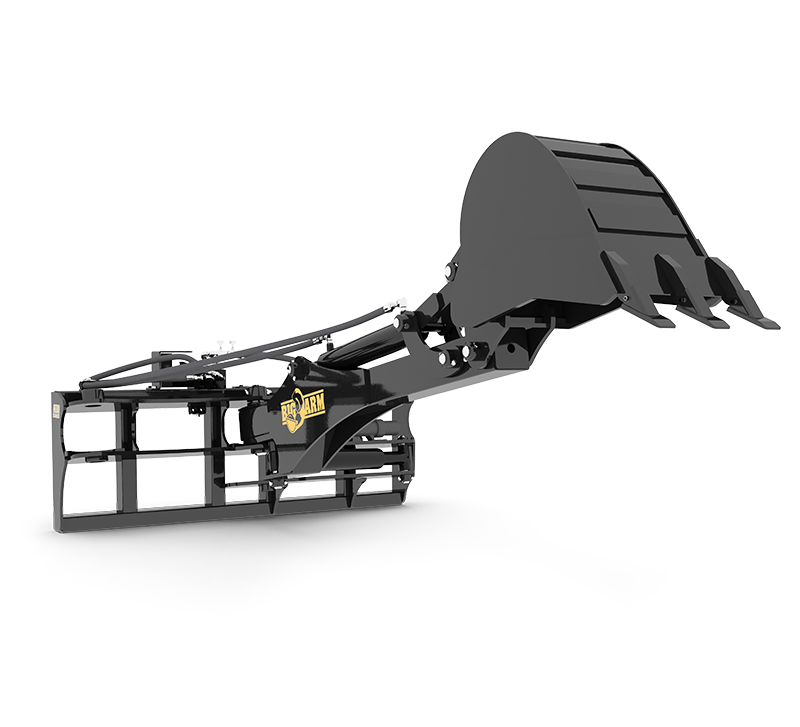

  • View the third image of the Big Arm Backhoe for Skidsteer
  • View the fourth image of the Big Arm Backhoe for Skidsteer

Big Arm Backhoe for Skidsteer

  • QTach to most skidsteer loaders
  • 6 ft digging depth
  • Hydraulic swing cylinder with 140° swing
  • Single electric selector valve with universal electro-hydraulic harness kit. 12V or 24V coils available.
  • Second boom mount on side of frame for digging along side foundations etc.
Part Number Description APPROX. WEIGHT
LBS.
BH600Backhoe Less Bucket595
SHBT099" Bucket for Big Arm Backhoe c/w Three Teeth110
SHBT1212" Bucket for Big Arm Backhoe c/w Three Teeth125
SHBT1515" Bucket for Big Arm Backhoe c/w Four Teeth145
SHBT1818" Bucket for Big Arm Backhoe c/w Four Teeth160
SHBT2020" Bucket for Big Arm Backhoe c/w Four Teeth170
SHB099" Bucket Less Teeth110
SHB1212" Bucket Less Teeth120
SHB1515" Bucket Less Teeth135
SHB1818" Bucket Less Teeth150
SHB2020" Bucket Less Teeth160
HK90Optional 90" Hose Kit c/w Flat Faced Couplers
SHMKOptional Spring Hose Mount Kit
Optional Wiring Kit - connect into your OEM skidsteer auxiliary electric controls
