4,200 LB Cap. - Heavy Duty Pallet Fork

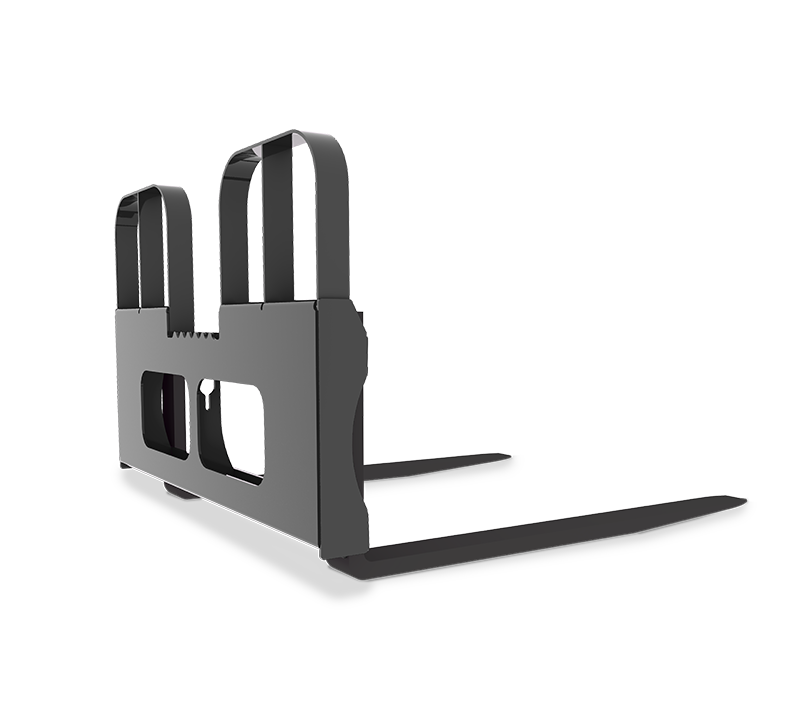

  • View the main image of the 4,200 LB Cap. - Heavy Duty Pallet Fork

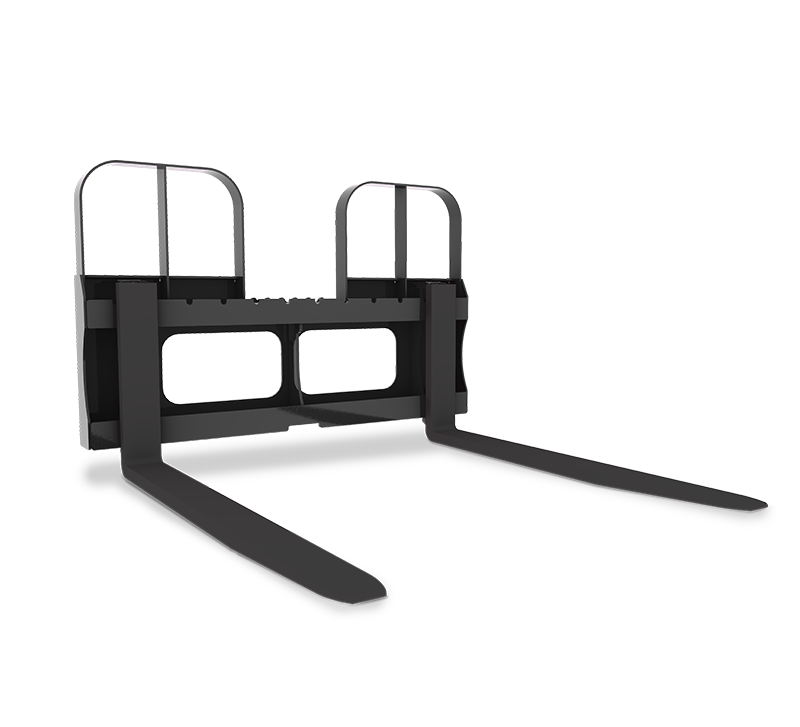

  • View the second image of the 4,200 LB Cap. - Heavy Duty Pallet Fork
  • View the third image of the 4,200 LB Cap. - Heavy Duty Pallet Fork

4,200 LB Cap. - Heavy Duty Pallet Fork

  • 1-3/8” x 4” Class II hook type solid fork lift tines
  • 4200 lbs capacity @ 20" L.C.
  • C/w guard
  • 50" wide carriage
  • Sliding adjustable
  • Tines can be locked in any position
  • Available with Economy or Domestic Tines
  • OPTIONAL - Full back guard (Brick Guard)
Part Number Description TINE
LENGTH
APPROX. WEIGHT
LBS.
HD4242WHeavy Duty Pallet Fork c/w Guard - Economy Tines42"405
HD4242Heavy Duty Pallet Fork c/w Guard - Domestic Tines42"405
HD4248WHeavy Duty Pallet Fork c/w Guard - Economy Tines48"425
HD4248Heavy Duty Pallet Fork c/w Guard - Domestic Tines48"425
HD42Carriage Only c/w Guard Less Tines
HD42BGOptional Full Back Guard (Brick Guard)
