Standard Front End Loader Bucket - REGULAR DUTY

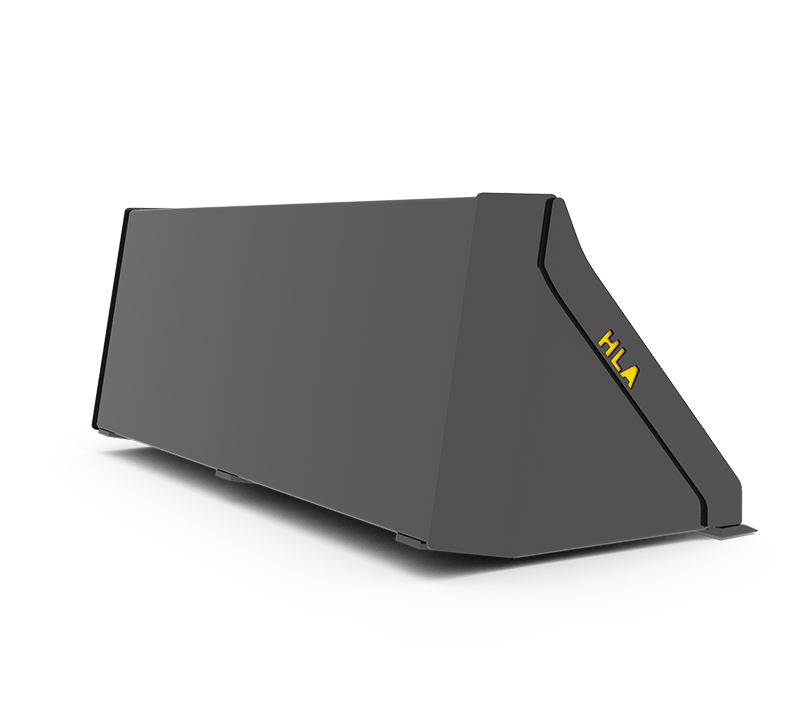

  • View the main image of the Standard Front End Loader Bucket - REGULAR DUTY

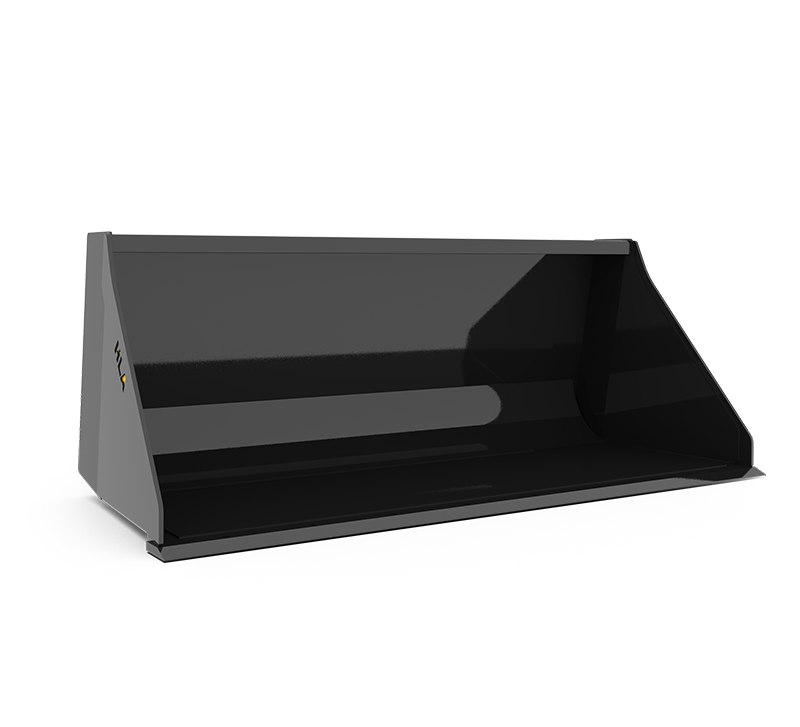

  • View the second image of the Standard Front End Loader Bucket - REGULAR DUTY

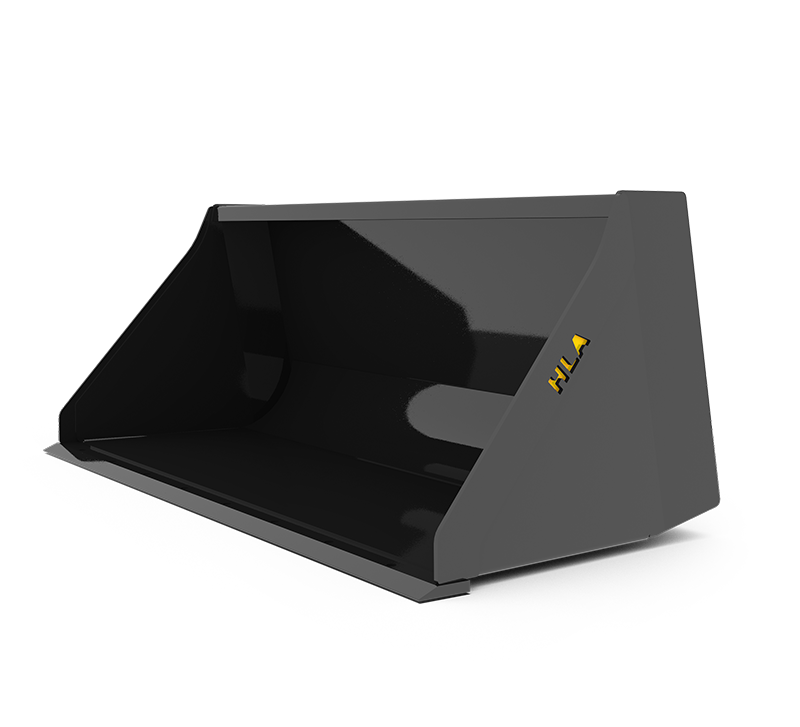

  • View the third image of the Standard Front End Loader Bucket - REGULAR DUTY

Standard Front End Loader Bucket - REGULAR DUTY

  • REGULAR DUTY
  • 3/16" material, 1/4" end plates
  • 3/4 X 4 bevelled cutting edge
  • Reinforced top lip
  • 28" deep, 25" high
  • Reinforced round back and end plates for strength, easy filling & clean out
  • Flat top acts as level indicator
  • Drilled for standard bolt on cutting edge
  • Tapered end plates are self-cleaning and reduces material build-up
  • NOTE: Add 2" to Inside Width column to calculate outside Width of bucket
Part Number Description INSIDE WIDTH
INCHES
STRUCK CAP.
CU. FT.
SAE HEAPED CAP.
CU. FT.
APPROX. WEIGHT
LBS.
MB4848" RD Standard Material Bucket4811.213.9385
MB5454" RD Standard Material Bucket5412.615.8415
MB6060" RD Standard Material Bucket6014.017.6440
MB6666" RD Standard Material Bucket6615.519.4465
MB7272" RD Standard Material Bucket7216.921.3490
MB7878" RD Standard Material Bucket7818.323.1525
MB8484" RD Standard Material Bucket8419.724.9550
MB9090" RD Standard Material Bucket9021.026.8590
MB9696" RD Standard Material Bucket9622.528.6615
MB108108" RD Standard Material Bucket10825.332.3675
346CEBOptional 346CEB 3/4 X 6 Double Bevel Bolt On Cutting Edge c/w Bolts & Nuts
348CEBOptional 348CEB 3/4 X 8 Double Bevel Bolt On Cutting Edge c/w Bolts & Nuts
346CESBOptional 346CESB 3/4 X 6 Single Bevel Serrated Bolt On Cutting Edge c/w Bolts & Nuts
RTMBKOptional RTMBK Knock On Ripper Teeth c/w Weld On Adapter & Flex Pin
