Low Profile Skidsteer Bucket - REGULAR DUTY
  • View the main image of the Low Profile Skidsteer Bucket - REGULAR DUTY
  • View the second image of the Low Profile Skidsteer Bucket - REGULAR DUTY
  • View the third image of the Low Profile Skidsteer Bucket - REGULAR DUTY

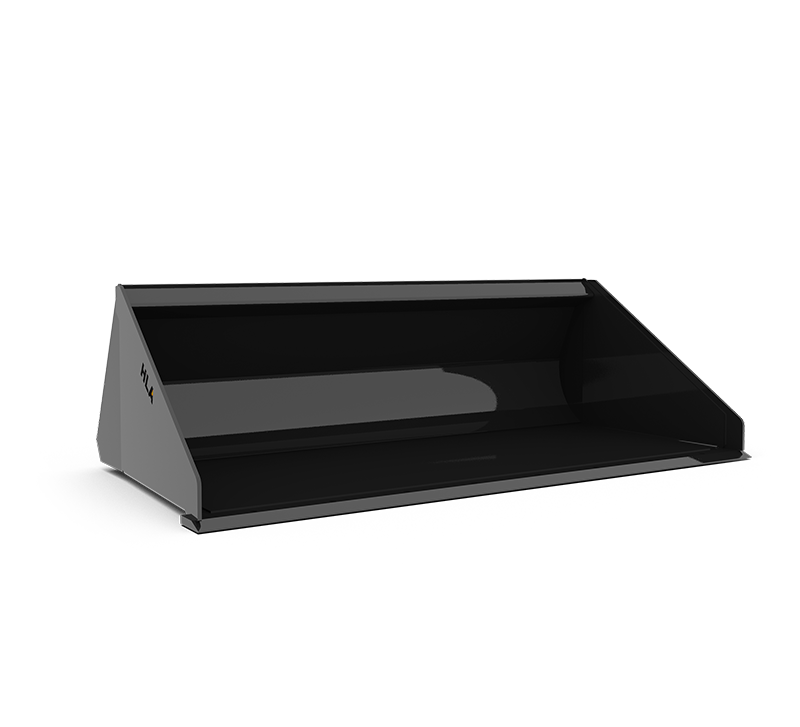

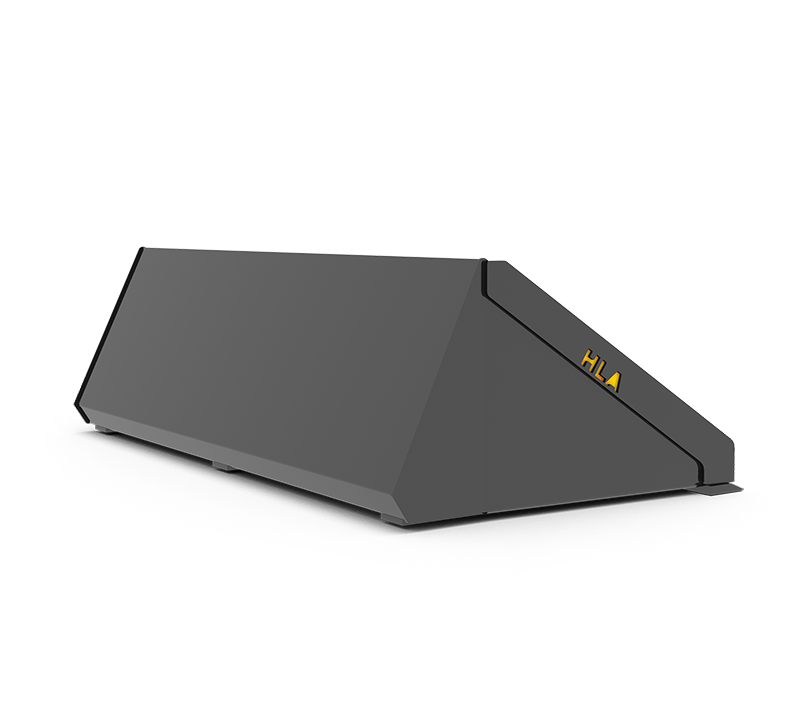

Low Profile Skidsteer Bucket - REGULAR DUTY

  • Regular Duty
  • 3/16" Material, 1/4" end plates
  • 3/4 X 4 bevelled cutting edge
  • Reinforced top lip
  • 32" deep, 19" high
  • Lower back and longer base enables operator to see cutting edge of bucket
  • Drilled for standard bolt on cutting edge
  • Tapered end plates are self-cleaning and reduces material build-up
  • Add 2" to Inside Width column to calculate outside Width of bucket
Part Number Description INSIDE WIDTH
INCHES
STRUCK CAP.
CU. FT.
SAE HEAPED CAP.
CU. FT.
APPROX. WEIGHT
LBS.
SBLP4848" Low Profile Skidsteer Bucket488.311.3395
SBLP5454" Low Profile Skidsteer Bucket549.412.8420
SBLP6060" Low Profile Skidsteer Bucket6010.414.3445
SBLP6666" Low Profile Skidsteer Bucket6611.416.1470
SBLP7272" Low Profile Skidsteer Bucket7212.517.4500
SBLP7878" Low Profile Skidsteer Bucket7813.518.9535
SBLP8484" Low Profile Skidsteer Bucket8414.620.4565
346CEBOptional 346CEB 3/4 X 6 Double Bevel Bolt On Cutting Edge c/w Bolts & Nuts
348CEBOptional 348CEB 3/4 X 8 Double Bevel Bolt On Cutting Edge c/w Bolts & Nuts
346CESBOptional 346CESB 3/4 X 6 Single Bevel Serrated Bolt On Cutting Edge c/w Bolts & Nuts
RTMBKOptional RTMBK Knock On Ripper Teeth c/w Weld On Adapter & Flex Pin
