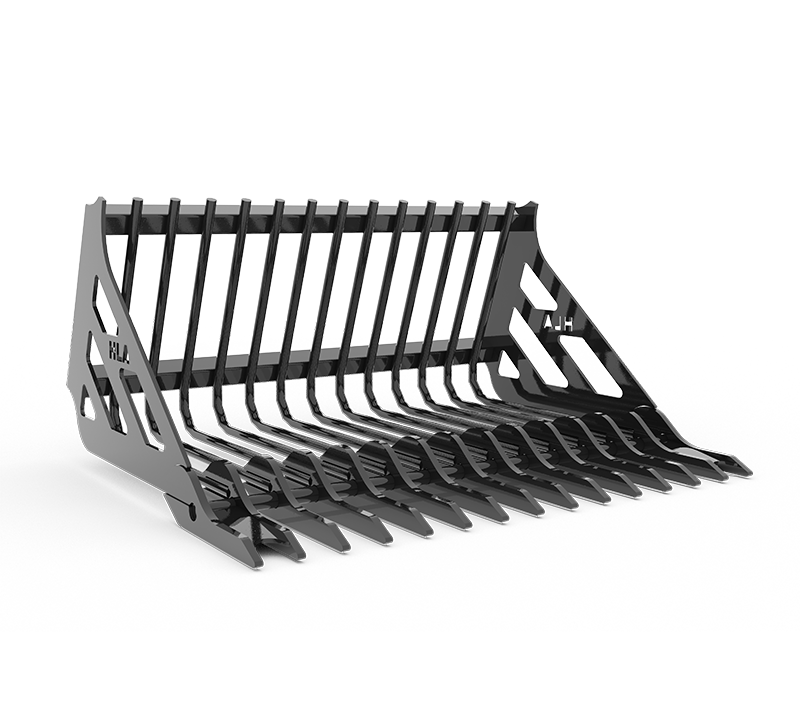

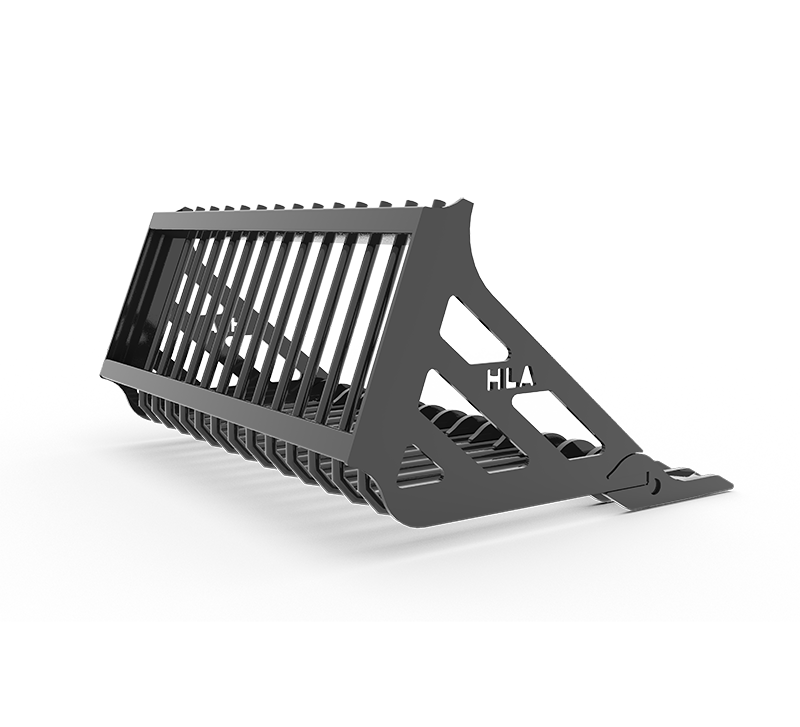

Stone Fork (Retainer Style Tine) COMPACT DUTY

Stone Fork (Retainer Style Tine) COMPACT DUTY

  • 1" Shaft diameter
  • 2-½" spacing between tines
  • Points are ⅝" thick, 400 Brinell high strength steel
  • 23" high
  • 35" deep
  • 2000 lbs capacity
Part Number Description APPROX. WEIGHT
LBS.
SFRC4848" Stone Fork Retainer Tine Compact Duty410
SFRC5555" Stone Fork Retainer Tine Compact Duty450
SFRC6262" Stone Fork Retainer Tine Compact Duty490
SFRC7070" Stone Fork Retainer Tine Compact Duty530
