Silage Grapple Bucket

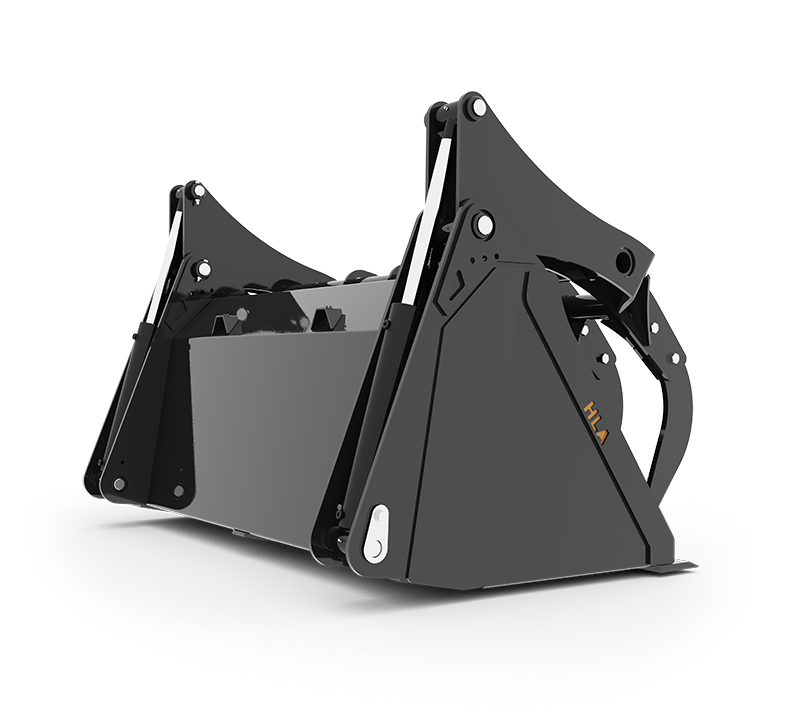

  • View the main image of the Silage Grapple Bucket

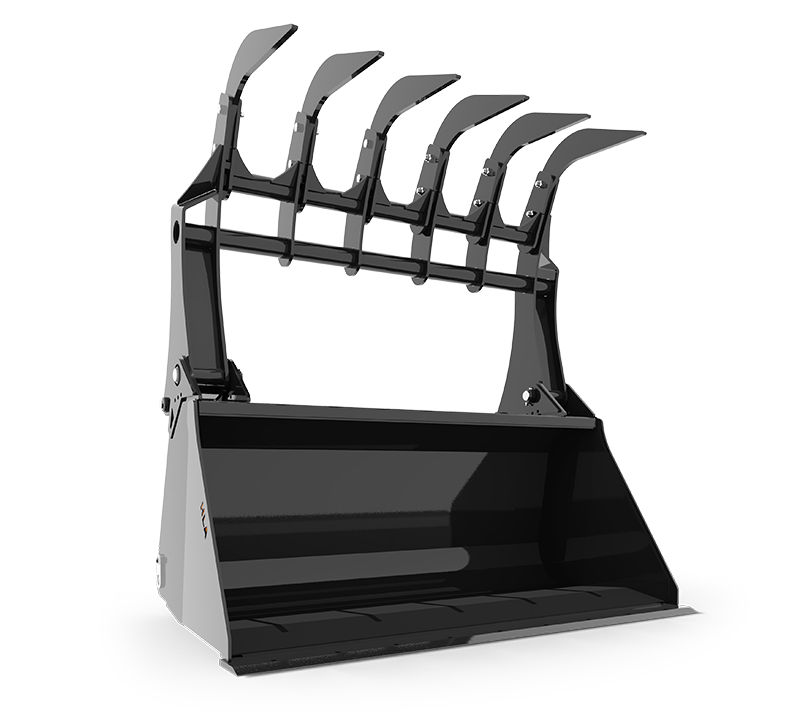

  • View the second image of the Silage Grapple Bucket

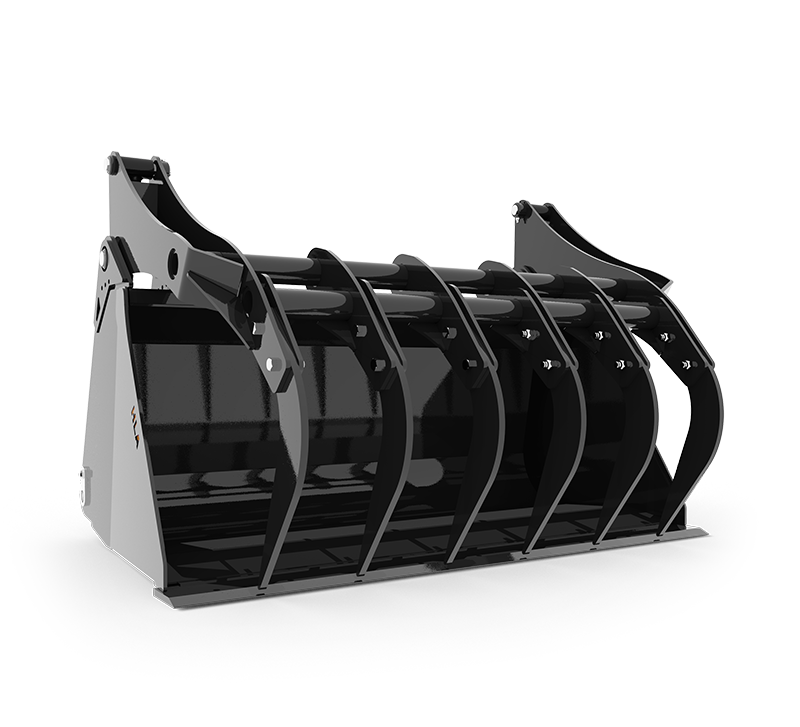

  • View the third image of the Silage Grapple Bucket
  • View the fourth image of the Silage Grapple Bucket

Silage Grapple Bucket

  • Heavy duty grapple integrated into the bucket design
  • Strategic pivoting arc design on the grapple for more power and less disturbance of the bunk silo face
  • 3 X 16 cylinders with 1-½" diameter pins
  • 2" diameter pivot pins on grapple
  • For outside width add 2" to inside width column.
  • 3/4" AR400 bolt on grapple teeth
Part Number Description INSIDE WIDTH
INCHES
STRUCK CAP.
CU. FT.
HEAPED CAP.
CU. FT.
APPROX. WEIGHT
LBS.
MBHVSG7272" Silage Grapple Bucket7227.339.51555
MBHVSG8484" Silage Grapple Bucket8431.846.21730
MBHVSG9696" Silage Grapple Bucket9636.352.91915
THMBHVSG9696" Telehandler Silage Grapple Bucket9659.4932260
MBHVSG108108" Silage Grapple Bucket10840.959.72195
THMBHVSG108108" Telehandler Silage Grapple Bucket10868.1104.62435
HK90Optional 90" Hose Kit c/w Flat Faced Couplers
HK9090Optional 90" Hose Kit c/w 90° Flat Faced Couplers
SHMKOptional Spring Hose Mount Kit
346CEBOptional 3/4 X 6 Double Bevel Bolt On Cutting Edge c/w Bolts & Nuts
SG72SGOptional Bolt On Guard for MBHVSG7227
SG84SGOptional Bolt On Guard for MBHVSG8432
SG96SGOptional Bolt On Guard for MBHVSG9637
SG108SGOptional Bolt On Guard for MBHVSG10842
348CEBOptional 3/4 X 8 Double Bevel Bolt On Cutting Edge c/w Bolts & Nuts
346CESBOptional 3/4 X 6 Single Bevel Serrated Bolt On Cutting Edge c/w Bolts & Nuts
RTMBKOptional Knock On Ripper Teeth c/w Weld On Adapter & Flex Pin (not available for THMBHVSG models)
