Standard Skidsteer Bucket - HEAVY DUTY

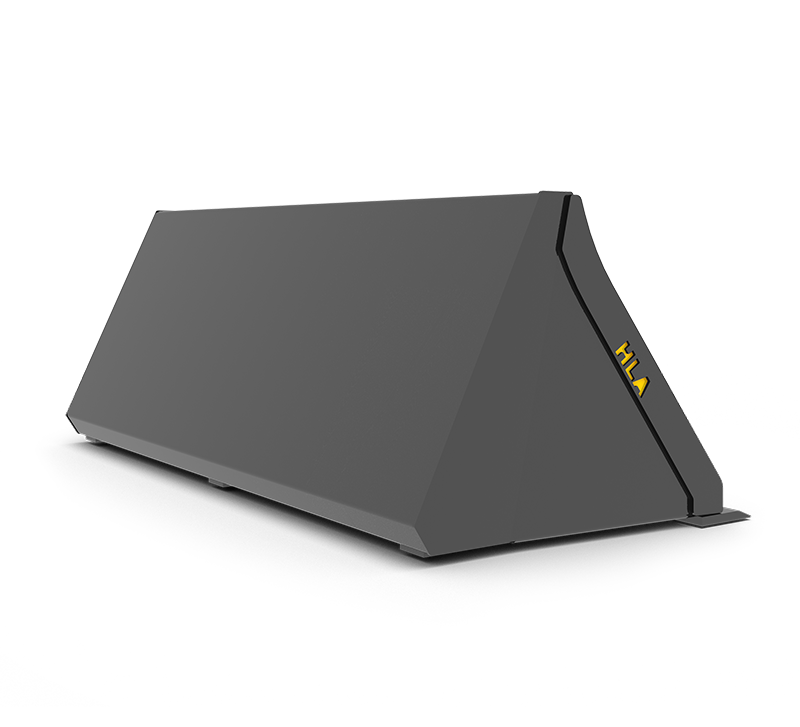

  • View the main image of the Standard Skidsteer Bucket - HEAVY DUTY

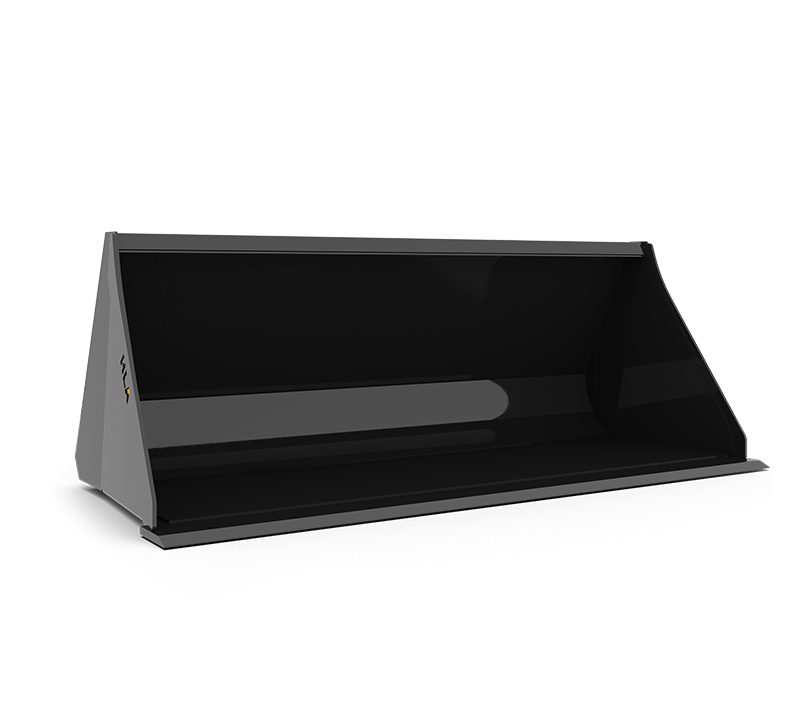

  • View the second image of the Standard Skidsteer Bucket - HEAVY DUTY
  • View the third image of the Standard Skidsteer Bucket - HEAVY DUTY

Standard Skidsteer Bucket - HEAVY DUTY

  • HEAVY DUTY
  • 1/4" material, 1/4" end plates
  • 3/4 X 6 bevelled cutting edge
  • Reinforced top lip
  • 30" deep, 26" high
  • Reinforced round back and end plates for strength, easy filling & clean out
  • Flat top acts as level indicator
  • Drilled for standard bolt on cutting edge
  • Tapered end plates are self-cleaning and reduces material build-up
  • NOTE: Add 2" to inside width column to calculate outside width of bucket
Part Number Description INSIDE WIDTH
INCHES
STRUCK CAP. CU. FT. - LEVELSAE HEAPED CAP. CU. FT.APPROX. WEIGHT
LBS.
SB48HD48" Hd Standard Skidsteer Bucket4811.013.6475
SB54HD54" Hd Standard Skidsteer Bucket5412.315.4515
SB60HD60" Hd Standard Skidsteer Bucket6013.717.2550
SB66HD66" Hd Standard Skidsteer Bucket661519590
SB72HD72" Hd Standard Skidsteer Bucket7216.520.8625
SB78HD78" Hd Standard Skidsteer Bucket7817.822.5675
SB84HD84" Hd Standard Skidsteer Bucket8419.224.3710
SB90HD90" Hd Standard Skidsteer Bucket9020.626.1760
SB96HD96" Hd Standard Skidsteer Bucket9621.927.9795
346CEBOptional 346CEB 3/4 X 6 Double Bevel Bolt On Cutting Edge c/w Bolts & Nuts
348CEBOptional 348CEB 3/4 X 8 Double Bevel Bolt On Cutting Edge c/w Bolts & Nuts
346CESBOptional 346CESB 3/4 X 6 Single Bevel Serrated Bolt On Cutting Edge c/w Bolts & Nuts
RTMBKOptional RTMBK Knock On Ripper Teeth c/w Weld On Adapter & Flex Pin
