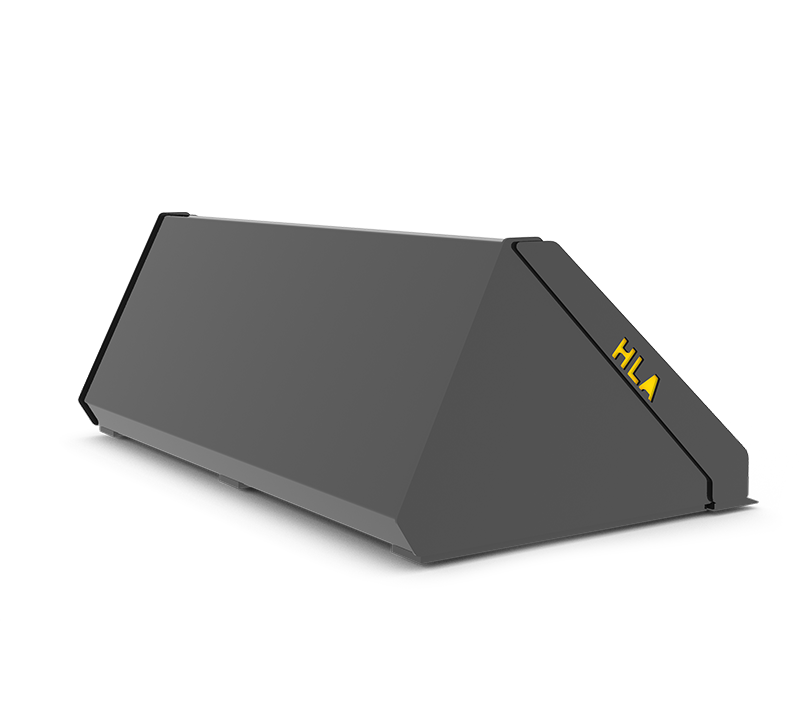

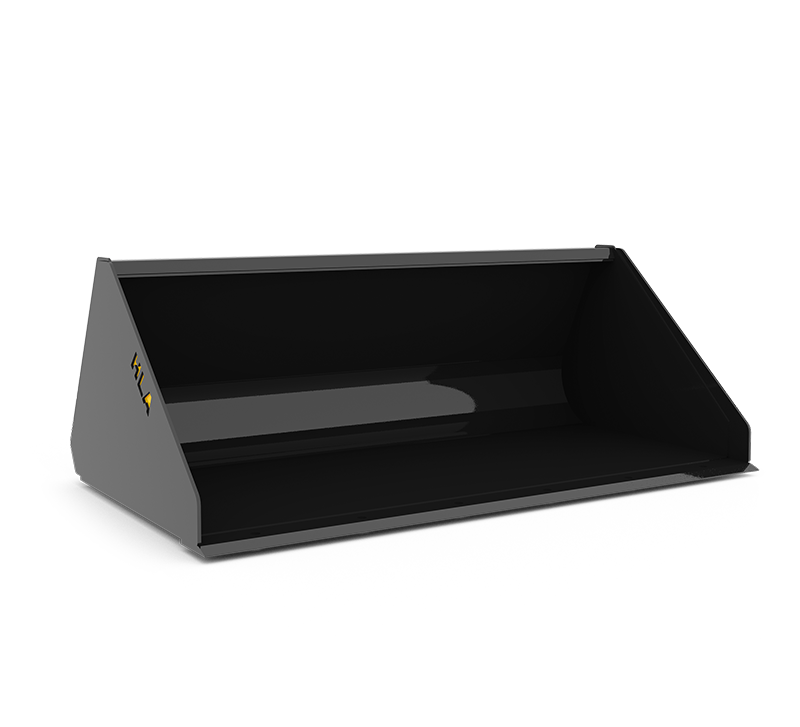

Compact Low Profile Bucket - Skidsteer

Compact Low Profile Bucket - Skidsteer

  • 1/8" material, 3/16" end plates
  • ½ X 4 bevelled cutting edge
  • 26" deep, 17" high
  • 65° slope on back of bucket
  • Reinforced round back and end plates for strength, easy filling & clean out
  • Longer base enables operator to see cutting edge of bucket
  • Flat top acts as level indicator
  • Drilled for standard bolt on cutting edge
Part Number Description INSIDE WIDTH (INCHES)STRUCK CAP.
CU. FT.
SAE
HEAPED CAP.
CU. FT.
APPROX. WEIGHT
LBS.
SBC36182836" Compact Low Profile Skidsteer Bucket364.96.0225
SBC48182848" Compact Low Profile Skidsteer Bucket486.58.2240
SBC54182854" Compact Low Profile Skidsteer Bucket547.39.2255
SBC60182860" Compact Low Profile Skidsteer Bucket608.110.3270
