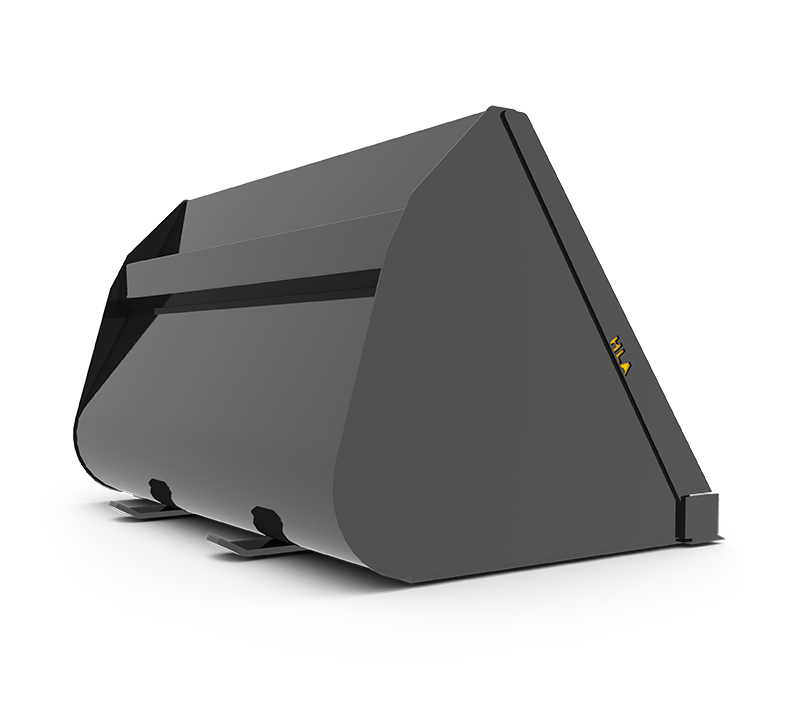

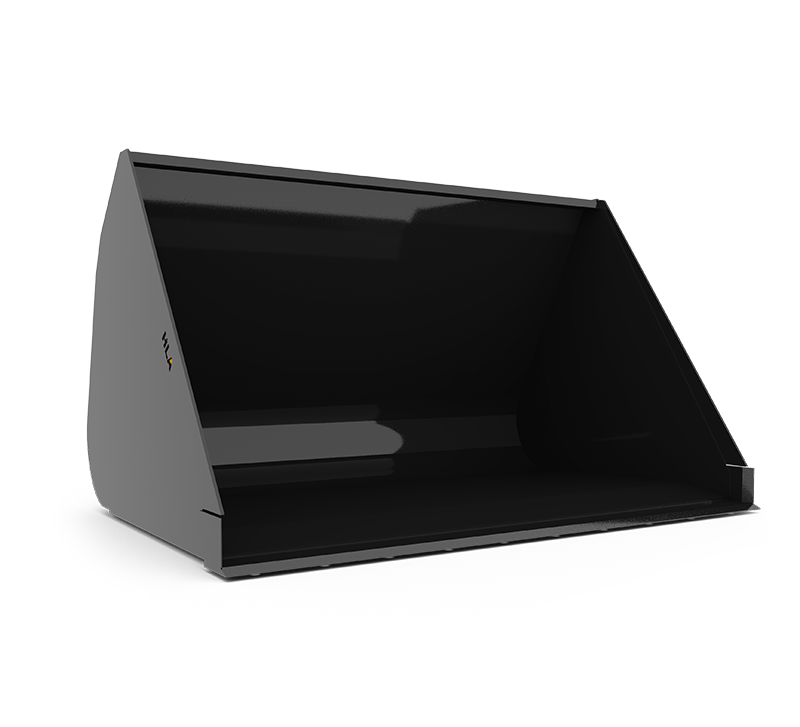

Telescopic Handler Bucket - EXTRA HIGH VOLUME

Telescopic Handler Bucket - EXTRA HIGH VOLUME

  • ¼" material, ¼" end plates
  • ¾ X 6 bevelled cutting edge
  • Reinforced top lip
  • 55" deep, 46" high
  • ¾ x 8 bolt-on double bevel edge optional
  • NOTE: Add 2" to Inside Width column to calculate outside width of bucket
Part Number Description INSIDE WIDTH
INCHES
STRUCK CAP. CU. YD.SAE HEAPED CAP. CU. YD.APPROX. WEIGHT
LBS.
THMBHVX8484" Extra High Volume Telescopic Handler Bucket842.53.11505
THMBHVX9696" Extra High Volume Telescopic Handler Bucket962.83.51640
THMBHVX108108" Extra High Volume Telescopic Handler Bucket1083.241750
348CEBOptional 348CEB 3/4 X 8 Double Bevel Bolt On Cutting Edge c/w Bolts & Nuts
346CESBOptional 346CESB 3/4 X 6 Single Bevel Serrated Bolt On Cutting Edge c/w Bolts & Nuts
