5,500 LB Cap. - Heavy Duty Pallet Fork

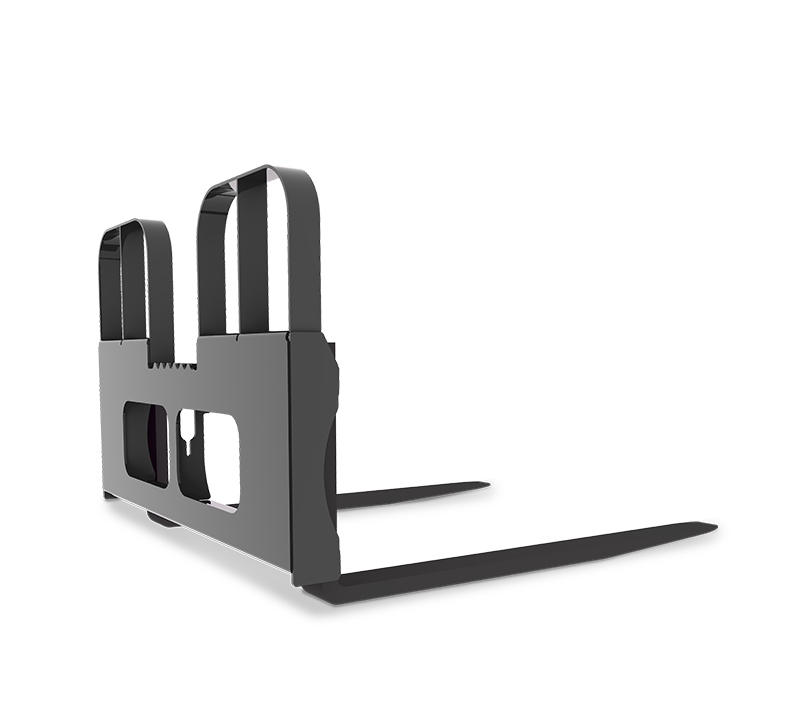

  • View the main image of the 5,500 LB Cap. - Heavy Duty Pallet Fork

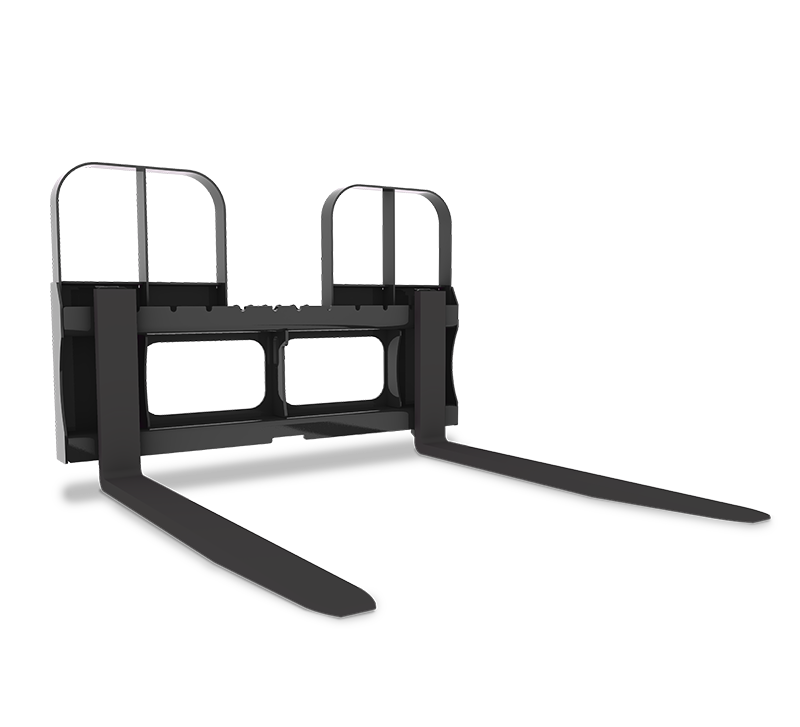

  • View the second image of the 5,500 LB Cap. - Heavy Duty Pallet Fork
  • View the third image of the 5,500 LB Cap. - Heavy Duty Pallet Fork

5,500 LB Cap. - Heavy Duty Pallet Fork

  • 1½” x 4” Class II hook type solid fork lift tines
  • 5500 lbs capacity @24" L.C.
  • C/w guard
  • 50" wide carriage
  • Sliding adjustable
  • Tines can be locked in any position
  • Economy or Domestic Tines for 42" and 48" only
  • OPTIONAL - full back guard option (Brick Guard)
Part Number Description TINE LENGTHAPPROX. WEIGHT
LBS.
HD5542WHeavy Duty Pallet Fork c/w Guard - Economy Tines42"455
HD5542Heavy Duty Pallet Fork c/w Guard - Domestic Tines42"455
HD5548WHeavy Duty Pallet Fork c/w Guard - Economy Tines48"480
HD5548Heavy Duty Pallet Fork c/w Guard - Domestic Tines48"480
HD5554Heavy Duty Pallet Fork c/w Guard 54" Tines54"495
HD5560Heavy Duty Pallet Fork c/w Guard 60" Tines60"515
HD5572Heavy Duty Pallet Fork c/w Guard 72" - Tines72"570
HD55Carriage Only c/w Guard Less TinesNANA
HD55BGOptional - Full Back Guard Option (Brick Guard)NANA
