High Volume Skidsteer Bucket - HEAVY DUTY

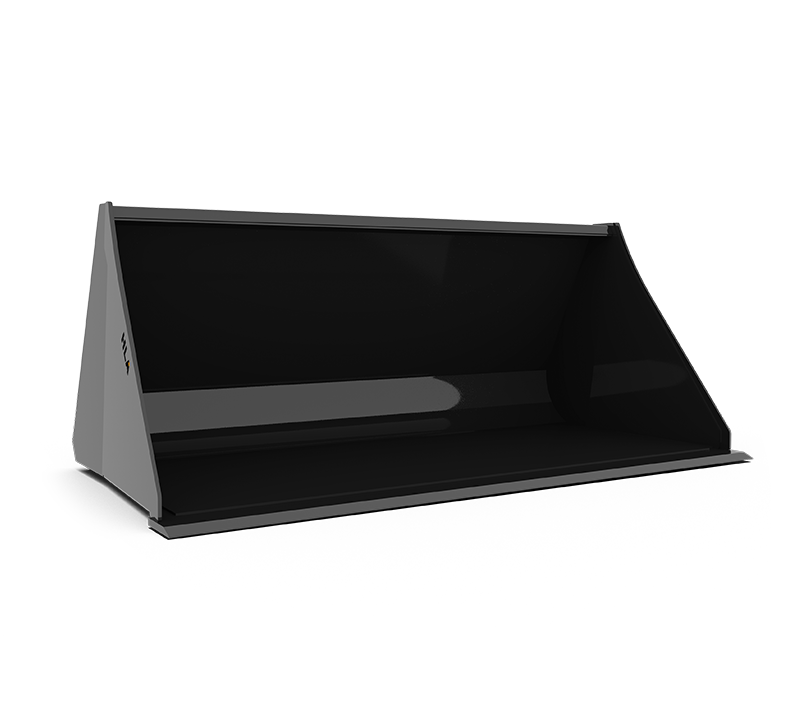

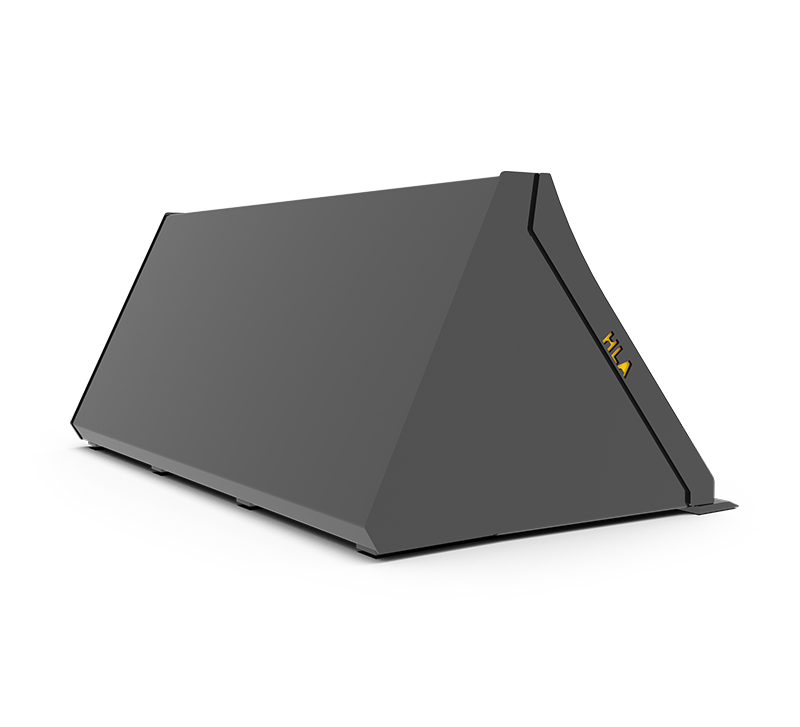

  • View the main image of the High Volume Skidsteer Bucket - HEAVY DUTY
  • View the second image of the High Volume Skidsteer Bucket - HEAVY DUTY
  • View the third image of the High Volume Skidsteer Bucket - HEAVY DUTY

High Volume Skidsteer Bucket - HEAVY DUTY

  • HEAVY DUTY
  • 1/4" material, 1/4" end plates
  • 3/4 X 6 bevelled cutting edge
  • Reinforced top lip
  • 36" deep, 31" high
  • Reinforced round back and end plates for strength, easy filling & clean out
  • Flat top acts as level indicator
  • Drilled for standard bolt on cutting edge
  • Tapered end plates are self-cleaning and reduces material build-up
  • NOTE: Add 2" to Inside Width column to calculate outside width of bucket
Part Number Description INSIDE WIDTH
INCHES
STRUCK CAP. CU. FT.SAE HEAPED CAP. CU. FT.APPROX. WEIGHT
LBS.
SBHV60HD60" Hd Hv Skidsteer Bucket6020.825.5650
SBHV66HD66" Hd Hv Skidsteer Bucket6622.928.1695
SBHV72HD72" Hd Hv Skidsteer Bucket722530.8740
SBHV78HD78" Hd Hv Skidsteer Bucket7827.133.5795
SBHV84HD84" Hd Hv Skidsteer Bucket8429.136.1840
SBHV96HD96" Hd Hv Skidsteer Bucket9633.341.5940
SBHV108HD108" Hd Hv Skidsteer Bucket10837.546.81040
346CEBOptional 346CEB 3/4 X 6 Double Bevel Bolt On Cutting Edge c/w Bolts & Nuts
348CEBOptional 348CEB 3/4 X 8 Double Bevel Bolt On Cutting Edge c/w Bolts & Nuts
346CESBOptional 346CESB 3/4 X 6 Single Bevel Serrated Bolt On Cutting Edge c/w Bolts & Nuts
RTMBKOptional RTMBK Knock On Ripper Teeth c/w Weld On Adapter & Flex Pin
