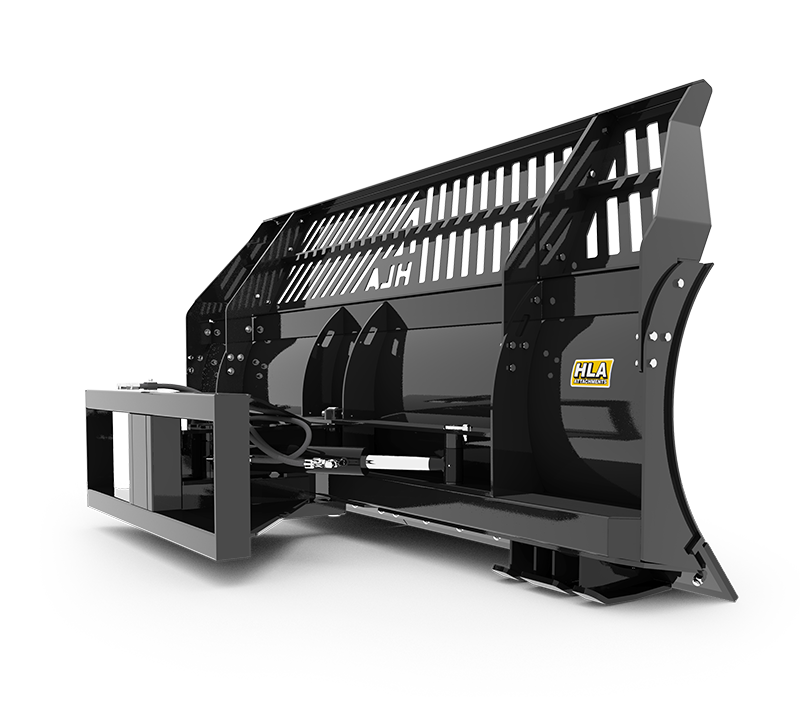

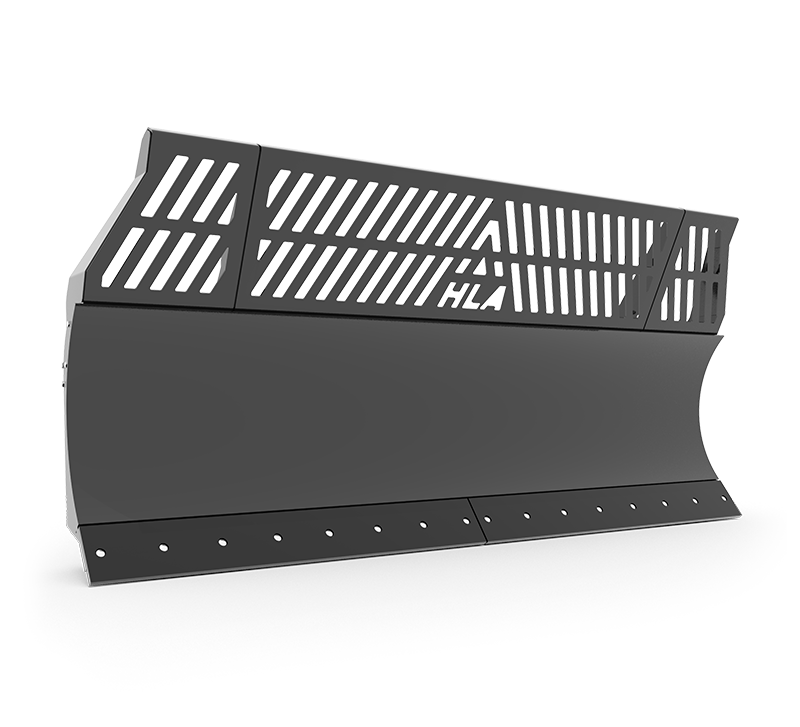

5000 Series Silage Blade - Front Wheel Assist Tractors

5000 Series Silage Blade - Front Wheel Assist Tractors

  • For front wheel assist tractors only
  • Compatible with SB5QDM Series undercarriage blade mounts.
  • Heavy duty construction with two angle cylinders
  • Reversible cutting edge
  • Skid shoes are standard
  • 58" high blade
  • 34" high mould board
  • 24" high mesh guard
  • 3 x 16 cylinders with 1-1/2" diameter pins
  • Available in CAT 2 or 3, three point hitch
Part Number Description APPROX.
WEIGHT LBS.
FB1010' Front Silage Blade2170
FB1212' Front Silage Blade2535
FB1414' Front Silage Blade2765
FBHPTOptional Hydraulic Power Tilt165
HK90Optional 90" Hose Kit C/W Flat Faced Couplers
