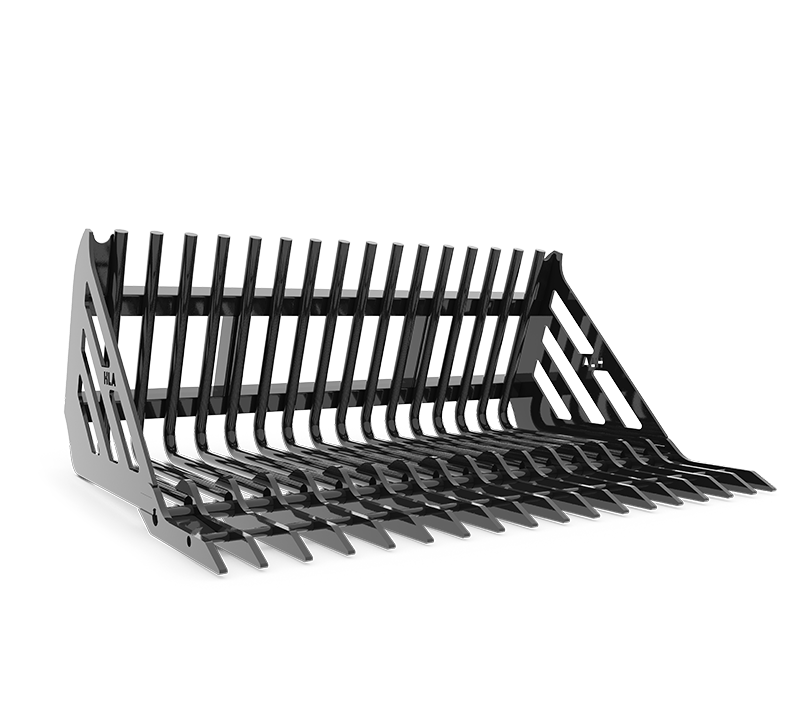

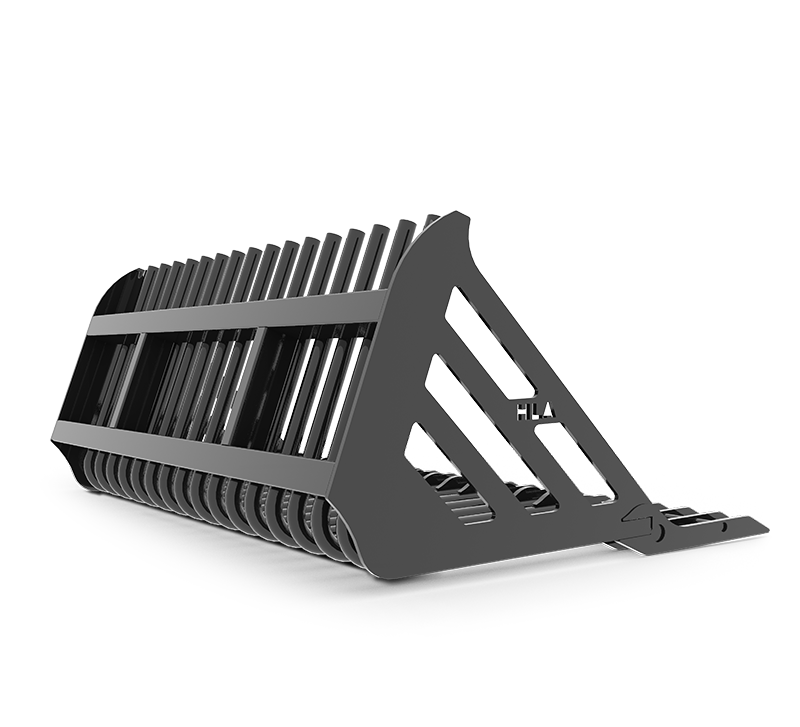

Stone Fork (Retainer Style Tine) - HEAVY DUTY
  • View the main image of the Stone Fork (Retainer Style Tine) - HEAVY DUTY
  • View the second image of the Stone Fork (Retainer Style Tine) - HEAVY DUTY
  • View the third image of the Stone Fork (Retainer Style Tine) - HEAVY DUTY

Stone Fork (Retainer Style Tine) - HEAVY DUTY

  • HEAVY DUTY
  • 1-¾" shaft diameter
  • 2-¾" spacing between tines
  • Points are ¾" thick, 400 Brinell high strength steel
  • 31" high
  • 50" deep
  • 9500 lbs capacity
Part Number Description APPROX. WEIGHT
LBS.
SFRH7777" Heavy Duty Stone Fork (Retainer Style Tines)1325
SFRH8585" Heavy Duty Stone Fork (Retainer Style Tines)1455
SFRH9090" Heavy Duty Stone Fork (Retainer Style Tines)1520
SFRH9494" Heavy Duty Stone Fork (Retainer Style Tines)1590
SFRH9898" Heavy Duty Stone Fork (Retainer Style Tines)1655
SFRH103103" Heavy Duty Stone Fork (Retainer Style Tines)1720
SFRH108108" Heavy Duty Stone Fork (Retainer Style Tines)1785
