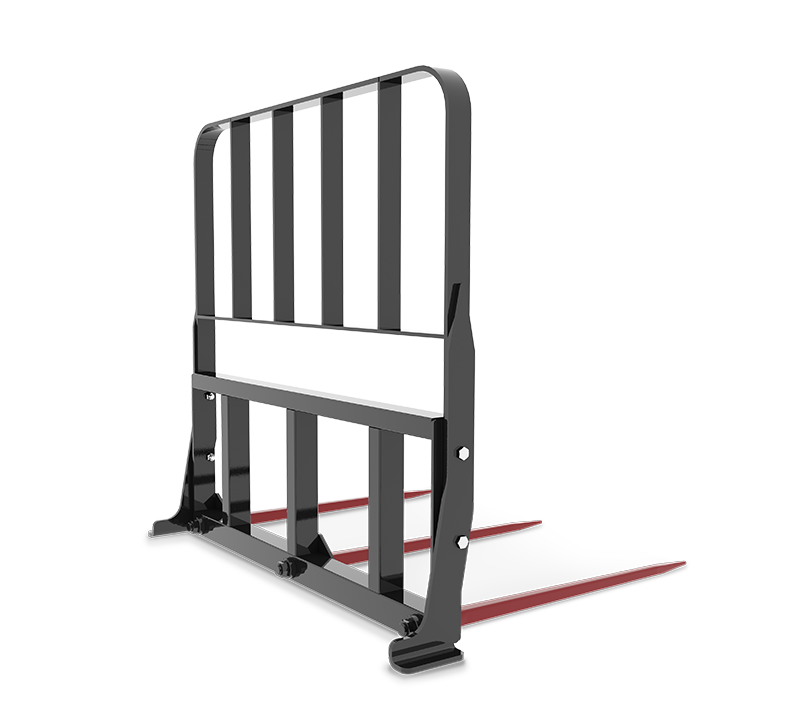

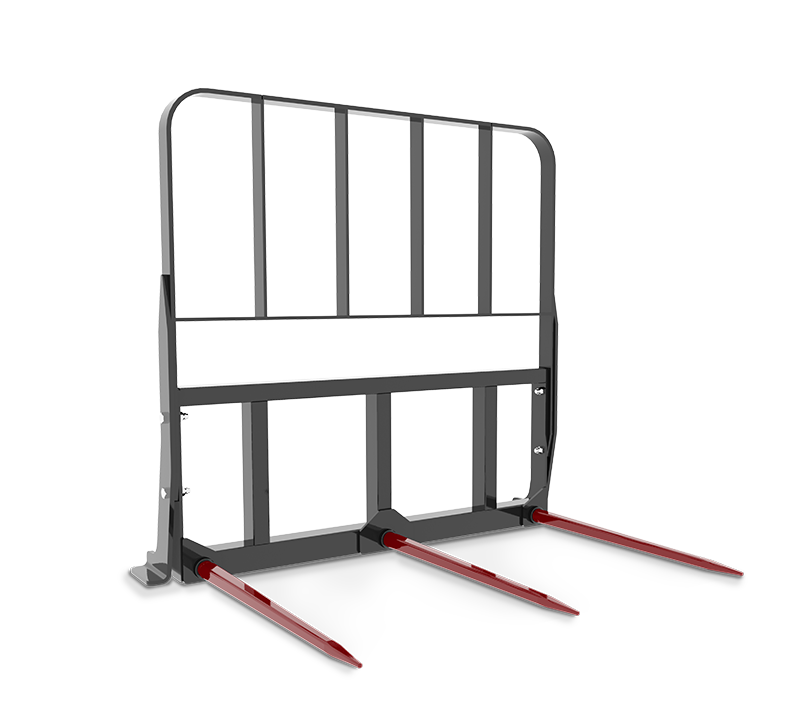

Three Prong Bale Spear c/w Guard

Three Prong Bale Spear c/w Guard

  • Kverneland tines @ 23" spacing
  • Made to handle large 4' x 4' x 8' square bales
  • Available with 32", 39" or 49" tines
  • Frame width 50"
  • Approximate weight: 330 lbs
  • Comes with bolt-on guard
  • Added protection for handling large square bales 2 high
  • Safety foot for roll over protection while in storage position
  • 50" overall height
  • Approximate weight: 330 lbs
  • 5000 lbs capacity @ 24” L.C.
Part Number Description
TE553232” Tine c/w Guard (27” useable length)
TE553939” Tine c/w Guard (34” useable length)
TE554949” Tine c/w Guard (44” useable length)
GUBolt On Guard Only
