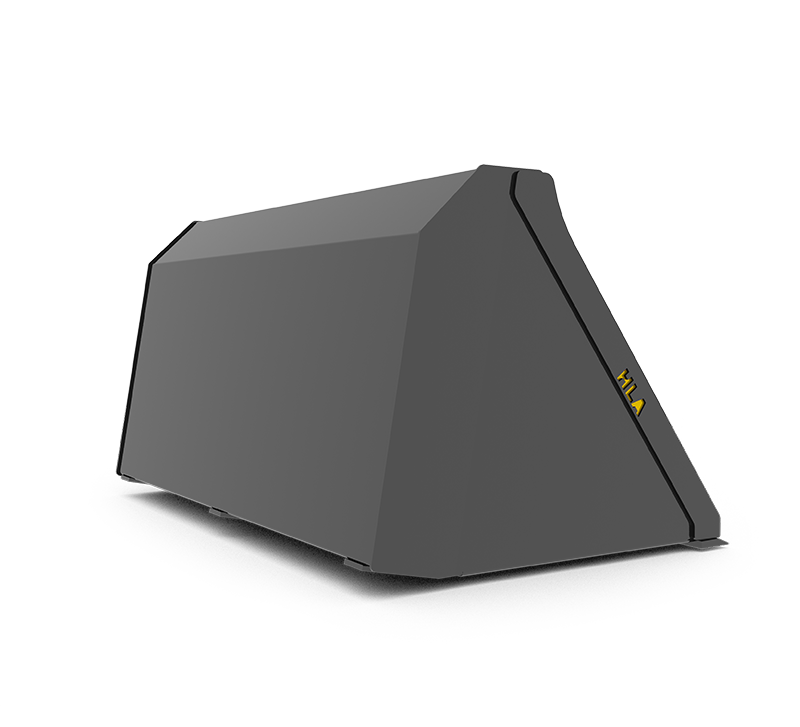

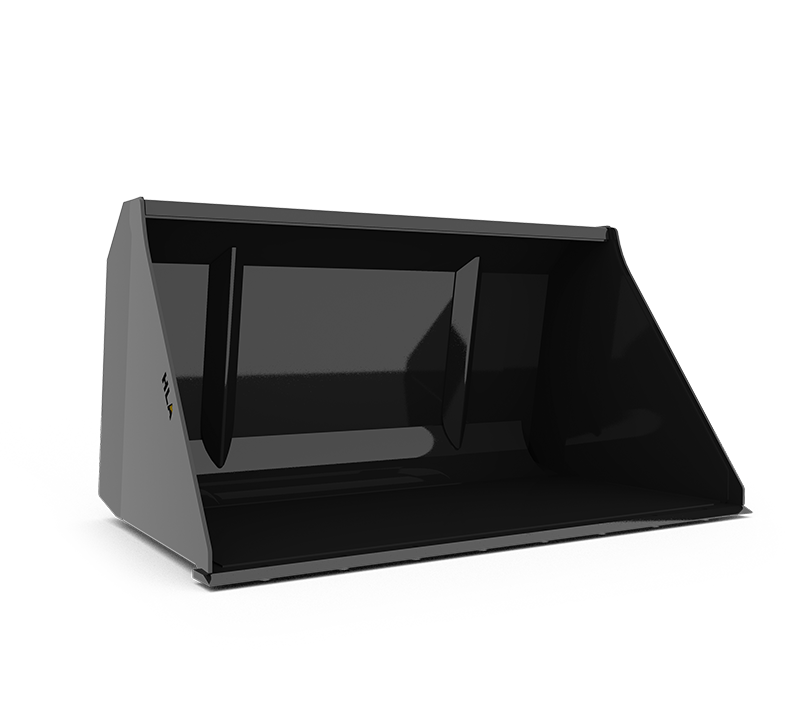

Extra High Volume Front End Loader Bucket - REGULAR DUTY
- REGULAR DUTY
- 3/16" material, ¼" end plates
- ¾ X 4 bevelled cutting edge
- Reinforced top lip
- 39" deep, 34" high
- Reinforced round back and end plates for strength, easy filling & clean out
- Flat top acts as level indicator
- Drilled for standard bolt on cutting edge
- Tapered end plates are self-cleaning and reduces material build-up
- NOTE: Add 2" to Inside Width column to calculate outside width of bucket
| Part Number | Description | INSIDE WIDTH INCHES | STRUCK CAP. CU. FT. | SAE HEAPED CAP. CU. FT. | APPROX. WEIGHT LBS. |
|---|---|---|---|---|---|
| MBHVX60 | 60" Hvx Material Bucket | 60 | 27.8 | 33.7 | 605 |
| MBHVX66 | 66" Hvx Material Bucket | 66 | 30.7 | 37.3 | 640 |
| MBHVX72 | 72" Hvx Material Bucket | 72 | 33.6 | 40.9 | 675 |
| MBHVX78 | 78" Hvx Material Bucket | 78 | 36.5 | 44.5 | 725 |
| MBHVX84 | 84" Hvx Material Bucket | 84 | 39.4 | 48.1 | 755 |
| MBHVX96 | 96" Hvx Material Bucket | 96 | 45.2 | 55.3 | 845 |
| MBHVX108 | 108" Hvx Material Bucket | 108 | 51 | 62.5 | 1015 |
| 346CEB | Optional 346CEB 3/4 X 6 Double Bevel Bolt On Cutting Edge c/w Bolts & Nuts | ||||
| 348CEB | Optional 348CEB 3/4 X 8 Double Bevel Bolt On Cutting Edge c/w Bolts & Nuts | ||||
| 346CESB | Optional 346CESB 3/4 X 6 Single Bevel Serrated Bolt On Cutting Edge c/w Bolts & Nuts |
