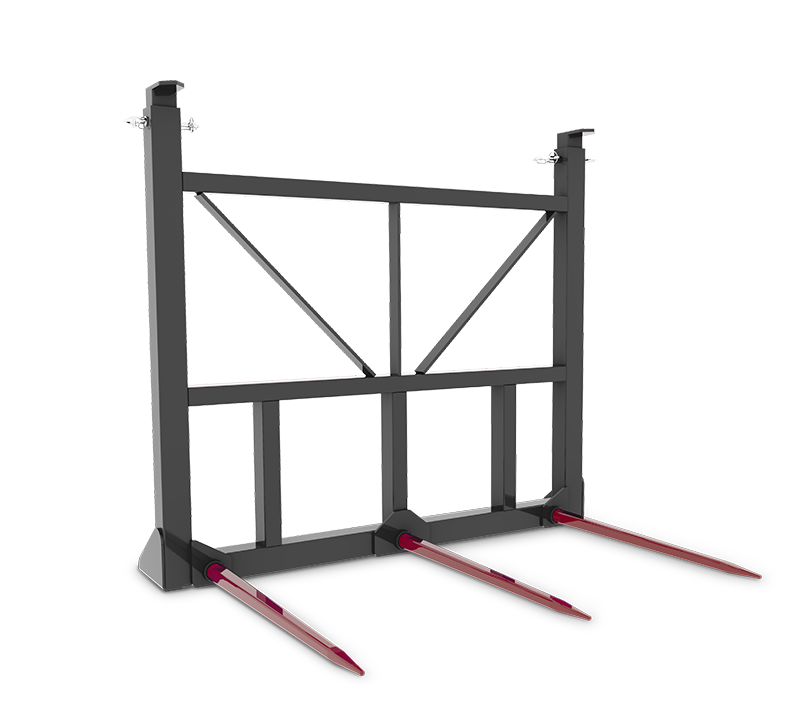

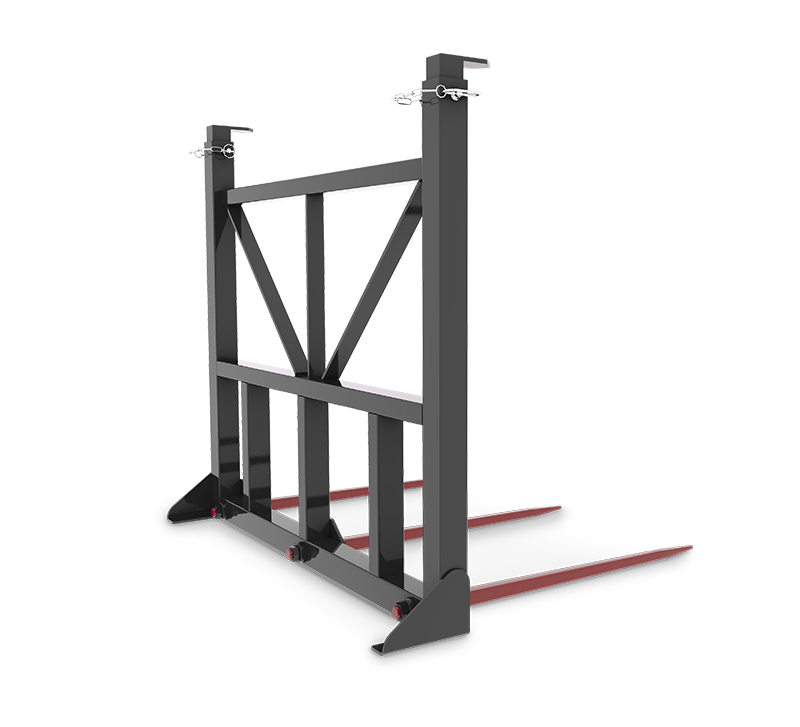

Three Prong Bale Spear c/w Adjustable Guard

Three Prong Bale Spear c/w Adjustable Guard

  • 50" high frame with adjustable guard posts for safe handling of large square bales up to 3 high
  • Safety foot for roll over protection while in storage position
  • Extended height of 84"
  • Retracted height of 50"
  • Available with 32", 39" or 49" tines
  • Frame width 56"
  • Approximate weight: 365 lbs
  • 6000 lbs capacity @ 24” L.C.
  • Kverneland tines @ 23” spacing
Part Number Description
TE5503232” Tine c/w adjustable Guard (27” useable length)
TE5503939” Tine c/w adjustable Guard (34” useable length)
TE5504949” Tine c/w adjustable Guard (44” useable length)
