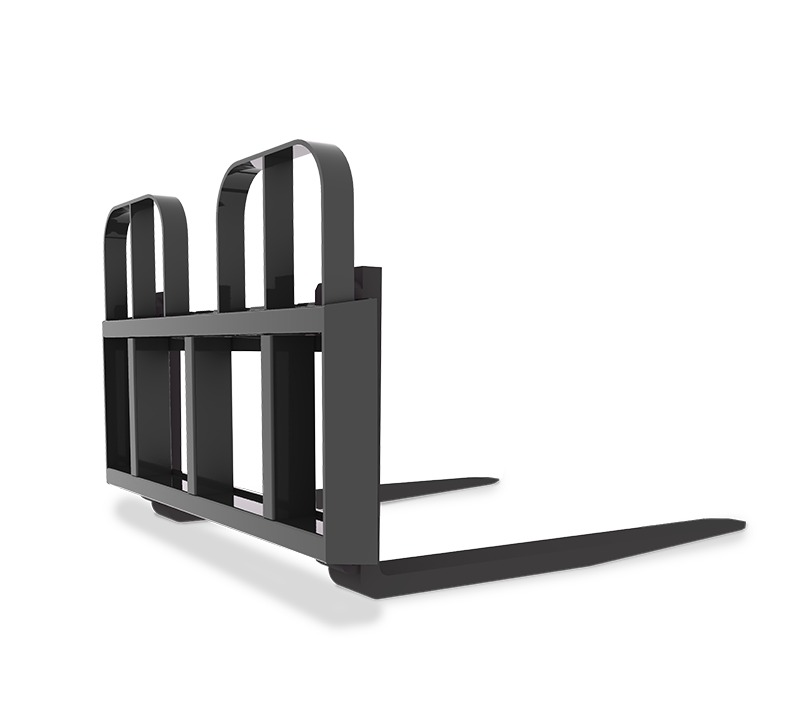

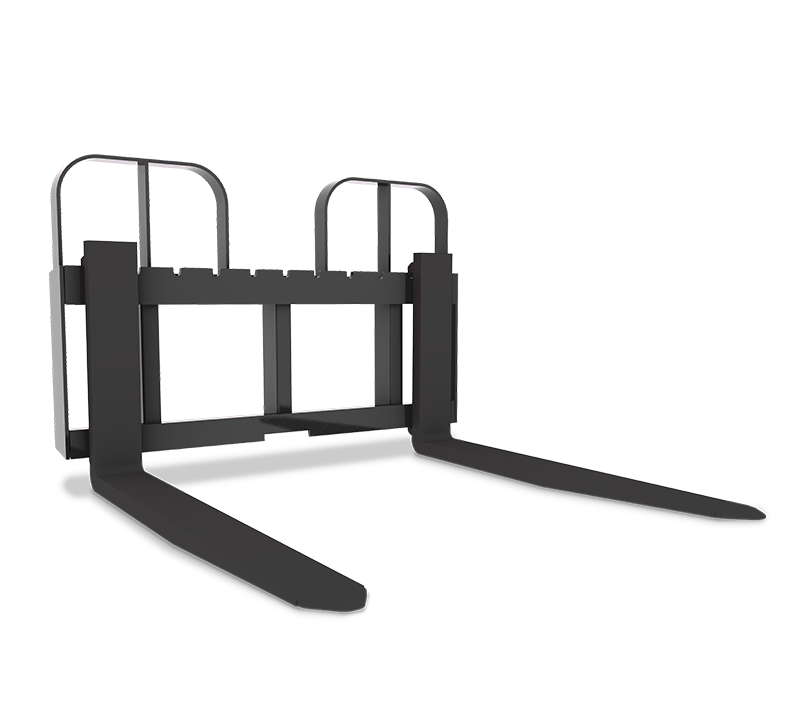

7,500 LB Cap. - Heavy Duty Pallet Fork

7,500 LB Cap. - Heavy Duty Pallet Fork

  • 1¾” x 5” Class III hook type solid fork lift tines
  • 7500 lbs capacity @ 24" L.C.
  • C/w guard
  • 50" wide carriage
  • Sliding adjustable tines can be locked in any position
  • OPTIONAL - Full Back Guard (Brick Guard)
Part Number Description TINE
LENGTH
APPROX. WEIGHT
LBS.
HD7548Heavy Duty Pallet Fork C/W Guard 48" Tines48"590
HD7554Heavy Duty Pallet Fork C/W Guard 54" Tines54"620
HD7560Heavy Duty Pallet Fork C/W Guard 60" Tines60"650
HD7572Heavy Duty Pallet Fork C/W Guard 72" Tines72"730
HD75Carriage Only C/W Guard Less Tines
HD75BGOptional - Full Back Guard Option (Brick Guard)
