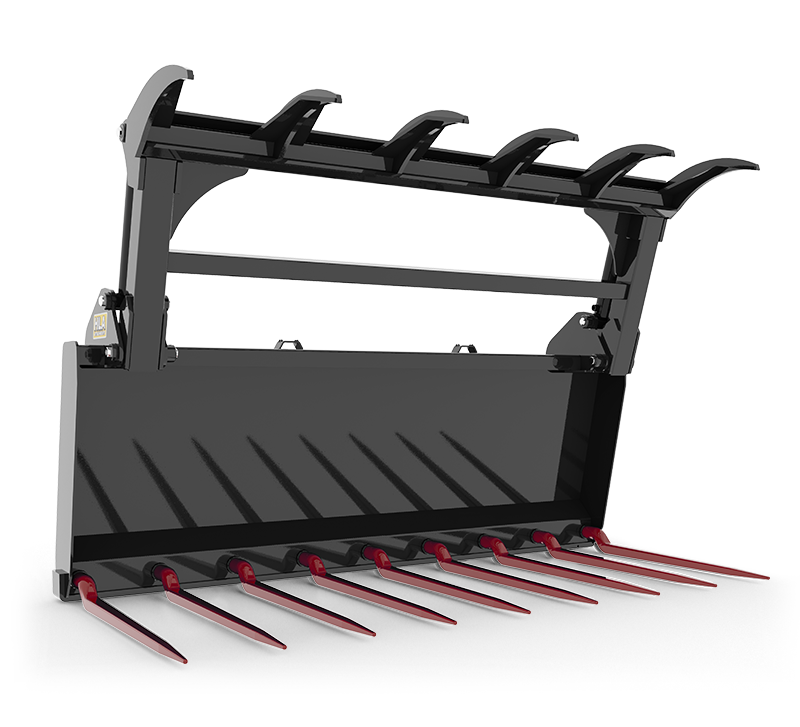

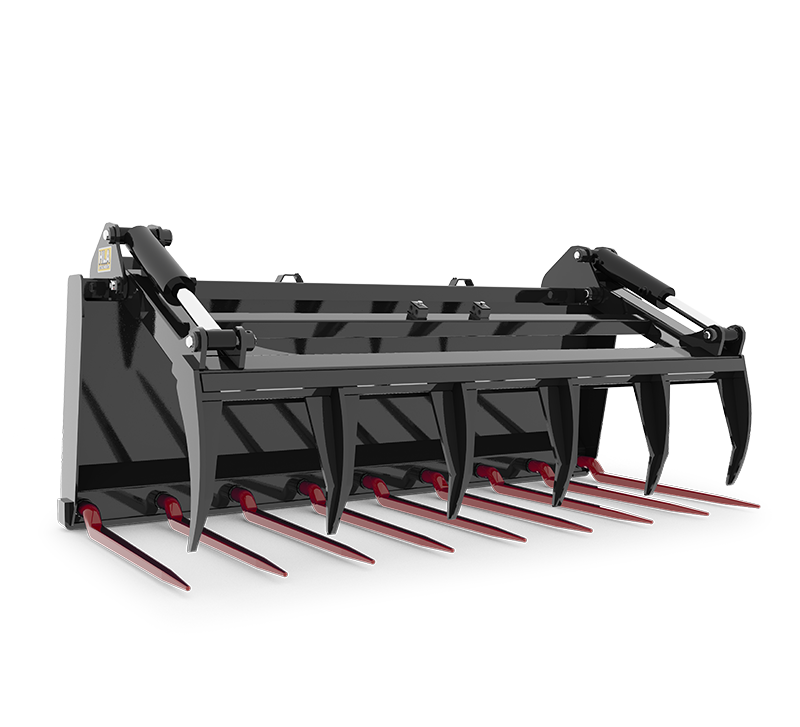

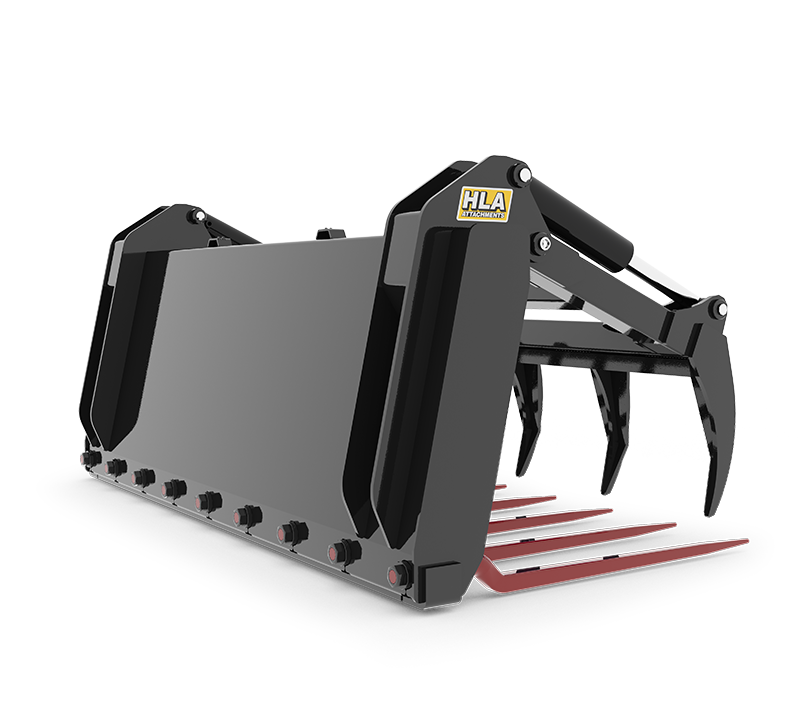

Manure Fork with Cranked Kverneland Tine & Skidsteer Grapple

Manure Fork with Cranked Kverneland Tine & Skidsteer Grapple

  • Designed for use on skidsteers with limited clearance for grapple arms
  • Comes with 2-1/2" x 8" cylinders
Part Number Description TINE CENTRES
INCHES
APPROX. WEIGHT
LBS.
MFE66GRS6066" Manure Fork Kverneland Tines & GRS60 Grapple8745
MFE72GRS6672" Manure Fork Kverneland Tines & GRS66 Grapple8-5/8765
MFE84GRS7284" Manure Fork Kverneland Tines & GRS72 Grapple8-1/8845
MFE96GRS8496" Manure Fork Kverneland Tines & GRS84 Grapple7-7/8935
HK90Optional 90" Hose Kit c/w Flat Faced Couplers
HK9090Optional 90" Hose Kit c/w 90° Flat Faced Couplers
SHMKOptional Spring Hose Mount Kit
