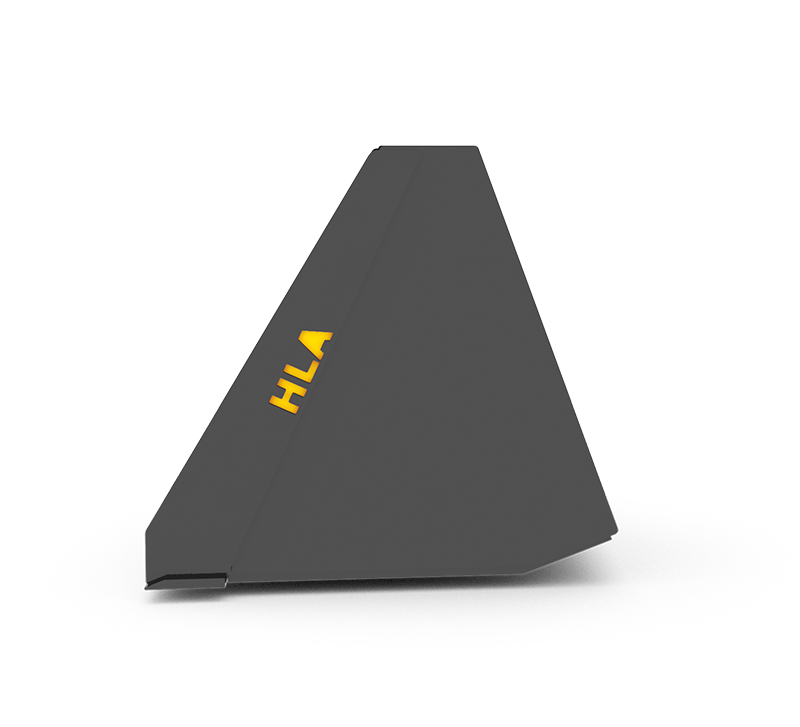

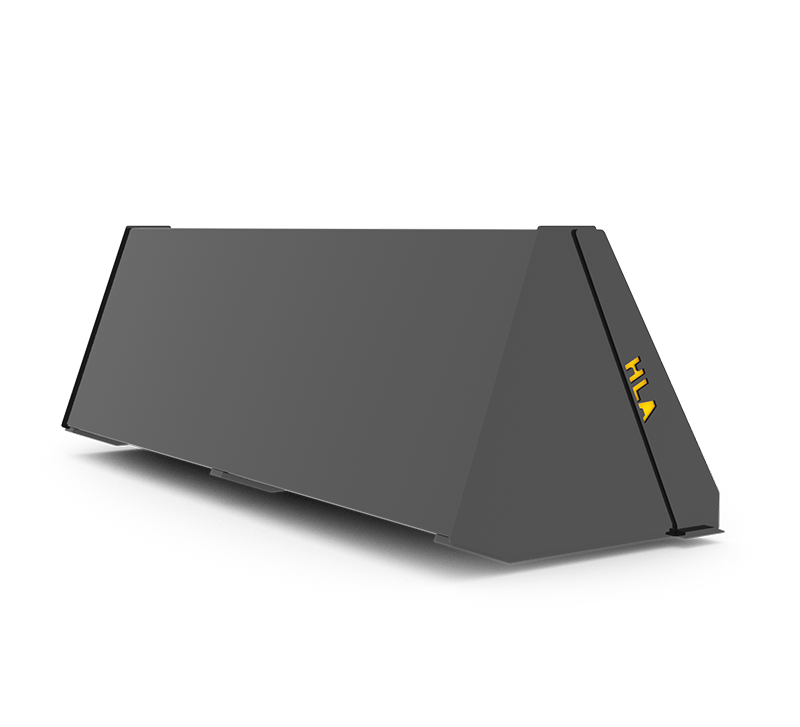

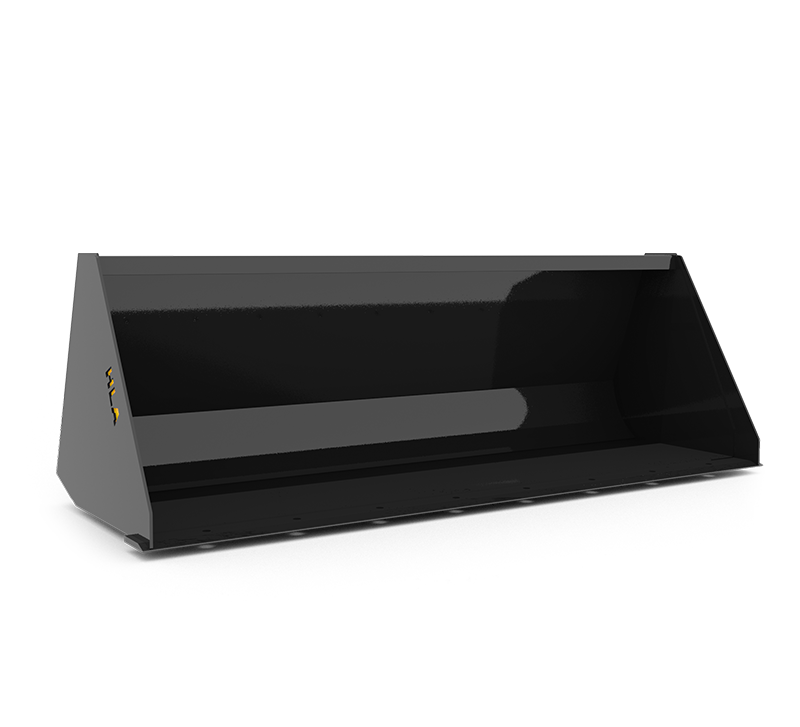

Compact Utility Bucket - Front End Loader
- 1/8" material, 3/16" end plates
- ½ X 4 bevelled cutting edge
- 22"deep, 21" high
- 70° slope on back of bucket
- Reinforced round back and end plates for strength, easy filling & clean out
- Flat top acts as level indicator
- Drilled for standard bolt on cutting edge
| Part Number | Description | INSIDE WIDTH INCHES | STRUCK CAP. CU. FT. | SAE HEAPED CAP. CU. FT. | APPROX. WEIGHT LBS. |
|---|---|---|---|---|---|
| MBC482122 | 48" Compact Utility Bucket | 48" | 8.0 | 9.8 | 230 |
| MBC542122 | 54" Compact Utility Bucket | 54" | 9.0 | 11.1 | 245 |
| MBC602122 | 60" Compact Utility Bucket | 60" | 10.0 | 12.3 | 260 |
| MBC662122 | 66" Compact Utility Bucket | 66" | 11.0 | 13.6 | 275 |
| MBC722122 | 72" Compact Utility Bucket | 72" | 12.0 | 14.9 | 290 |
