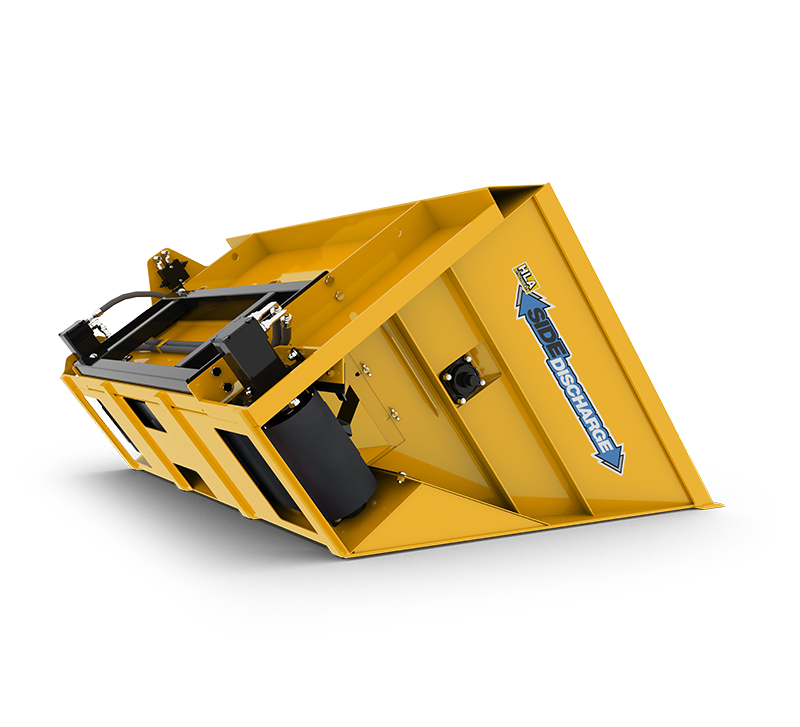

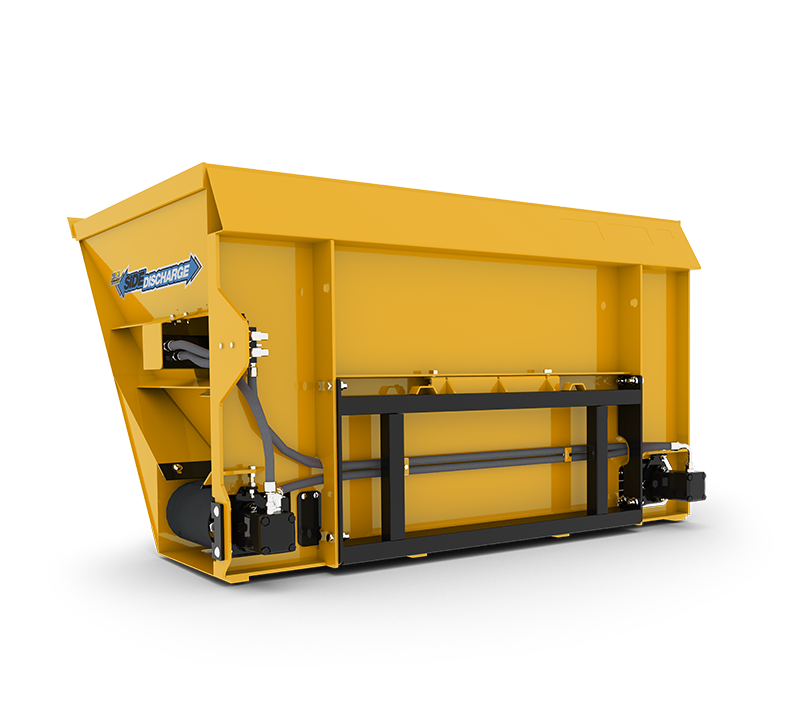

Side Discharge Sawdust Bucket
  • Walkaround Video

Side Discharge Sawdust Bucket

  • Minimum 12 GPM required
  • Hydraulic drive (coupled direct)
  • Beater to prevent bridging
  • Discharge from either side of machine
  • 44"H x 57"L outside dimensions
  • Two hydraulic motors on discharge belt (72", 84" & 96" only)
  • For Outside Width add 2-1/2" to Inside Width dimension.
  • Bolted adaptation for loader quick-tach. Easily convert to most loaders
Part Number Description INSIDE WIDTH (INCHES)HEAPED CAP. CU. YD.APPROX. WEIGHT
LBS.
SS6060" Side Discharge (Chevron Belt)601 1/21020
SSC6060" Side Discharge (3/4" Cleated Belt)601 1/21020
SS7272" Side Discharge (Chevron Belt)721 7/81205
SSC7272" Side Discharge (3/4" Cleated Belt)721 7/81205
SS8484" Side Discharge (Chevron Belt)842 1/81300
SSC8484" Side Discharge (3/4" Cleated Belt)842 1/81300
SS9696" Side Discharge (Chevron Belt)962 1/21560
SSC9696" Side Discharge (3/4" Cleated Belt)962 1/21560
LP102468Optional Agitator Speed Control Valve -Factory Installed Only
HK90Optional 90" Hose Kit C/W Flat Faced Couplers
HK9090Optional 90" Hose Kit c/w 90° Flat Faced Couplers
SHMKOptional Spring Hose Mount Kit
Optional CAT 2 Three Point Hitch Mount c/w Tilting Cylinder
