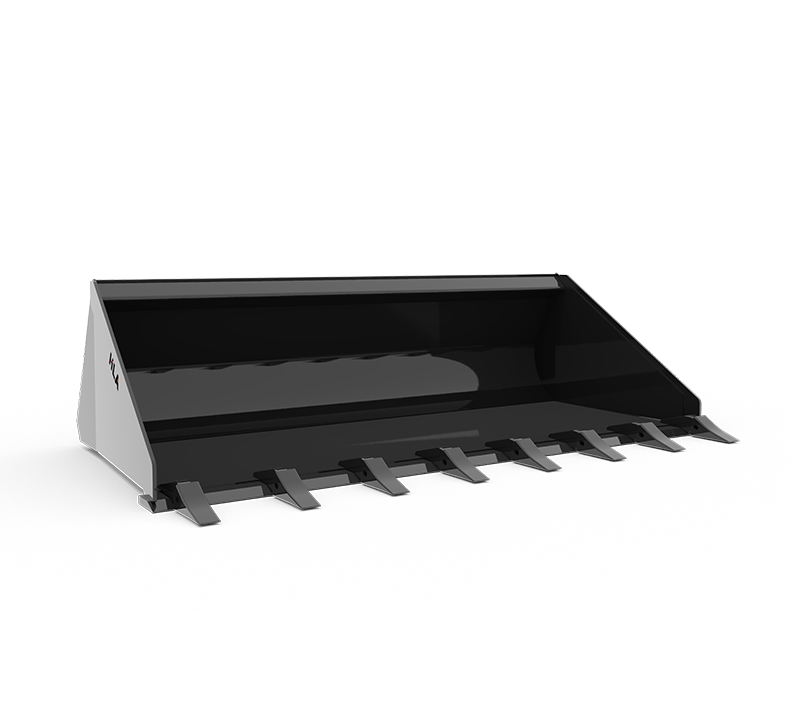

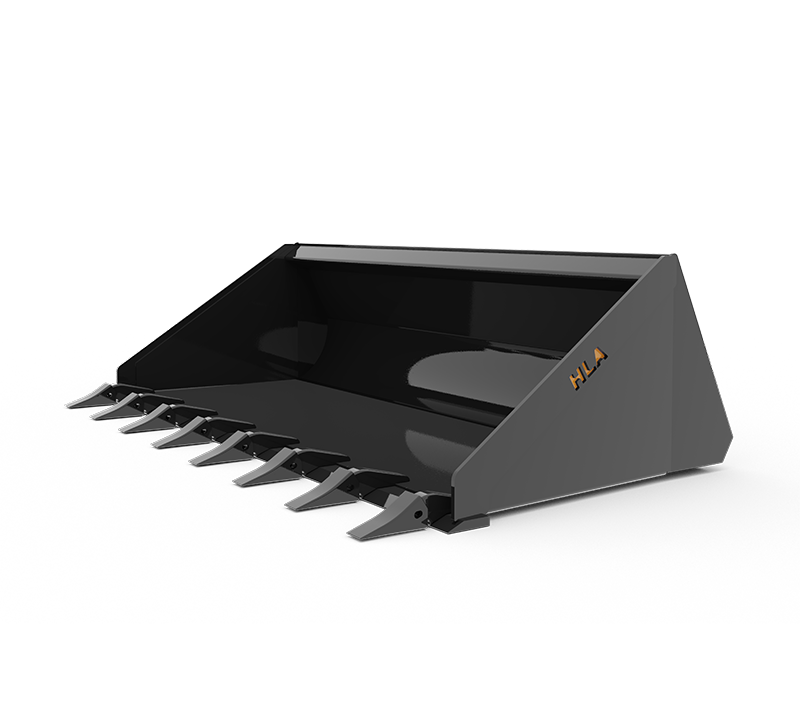

Low Profile Skidsteer Bucket c/w Digging Teeth - REGULAR DUTY

Low Profile Skidsteer Bucket c/w Digging Teeth - REGULAR DUTY

  • Regular duty
  • 3/16" material, ¼" end plates
  • ¾ X 4 bevelled cutting edge
  • Reinforced top lip
  • 32" deep, 19" high
  • Lower back and longer base enables operator to see cutting edge of bucket
  • Tapered end plates are self-cleaning and reduces material build-up
  • NOTE: Add 2" to Inside Width column to calculate Outside Width of bucket
Part Number Description INSIDE WIDTH
INCHES
STRUCK CAP.
CU. FT.
SAE HEAPED CAP.
CU. FT.
APPROX. WEIGHT
LBS.
NUMBER OF DIGGING TEETH
SBLP48T648" Regular Duty Low Profile Skidsteer Bucket With Digging Teeth488.311.34356
SBLP54T654" Regular Duty Low Profile Skidsteer Bucket With Digging Teeth549.412.84656
SBLP60T760" Regular Duty Low Profile Skidsteer Bucket With Digging Teeth6010.414.34907
SBLP66T766" Regular Duty Low Profile Skidsteer Bucket With Digging Teeth6611.416.15207
SBLP72T872" Regular Duty Low Profile Skidsteer Bucket With Digging Teeth7212.517.45508
SBLP78T878" Regular Duty Low Profile Skidsteer Bucket With Digging Teeth7813.518.95908
SBLP84T984" Regular Duty Low Profile Skidsteer Bucket With Digging Teeth8414.620.46209
346CEBOptional 346CEB 3/4 X 6 Double Bevel Bolt On Cutting Edge c/w Bolts & Nuts
348CEBOptional 348CEB 3/4 X 8 Double Bevel Bolt On Cutting Edge c/w Bolts & Nuts
346CESBOptional 346CESB 3/4 X 6 Single Bevel Serrated Bolt On Cutting Edge c/w Bolts & Nuts
RTMBKOptional RTMBK Knock On Ripper Teeth c/w Weld On Adapter & Flex Pin
