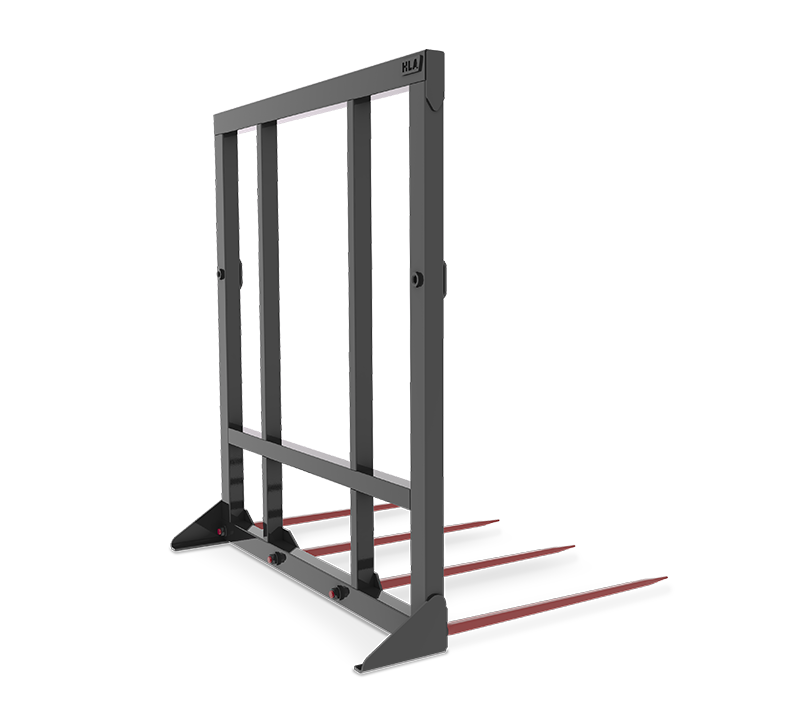

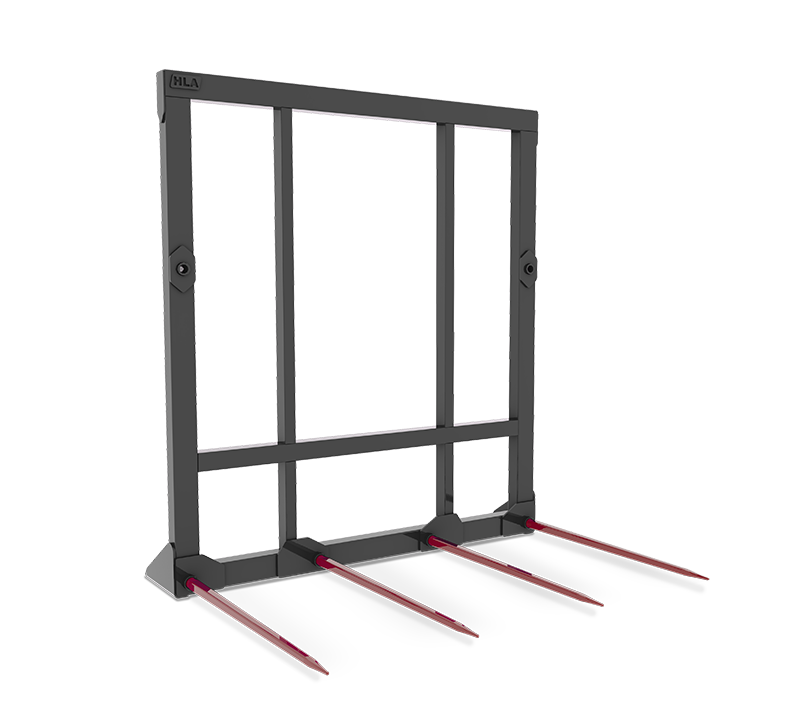

Four Prong Bale Spear w/ Rigid Frame

Four Prong Bale Spear w/ Rigid Frame

  • Ideal for handling stacked large square bales
  • 80" overall height
  • Safety foot for roll over protection while in storage position
  • Frame width 72"
  • Conus 1 bushings in upper frame for optional stabilizers
  • 6000 lbs capacity @ 24" L.C.
  • Kverneland tines @ 21-5/8" spacing
  • Approximate weight 580 lbs
Part Number Description
FE783939" Tine (34" Useable Length)
FE784949" Tine (44" Useable Length)
