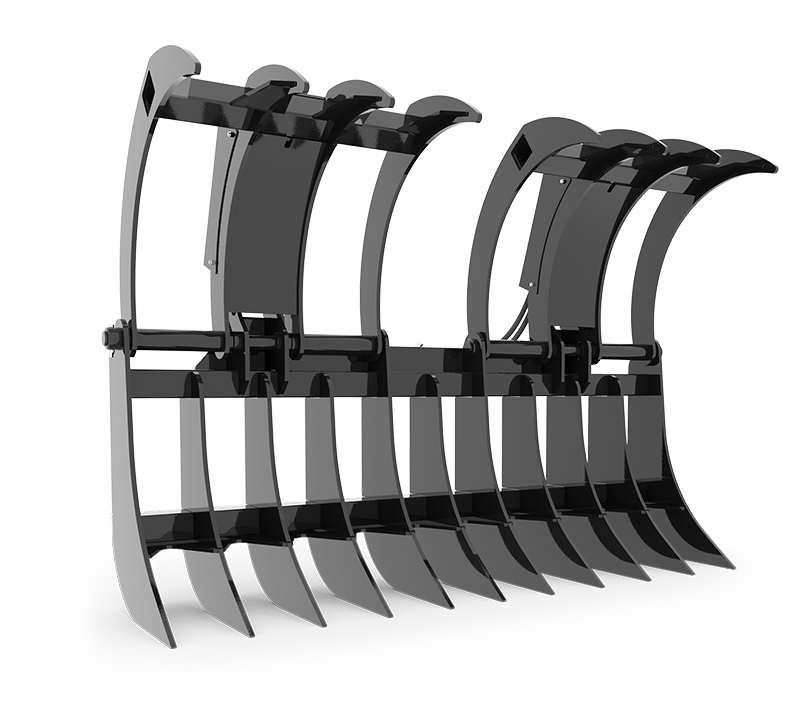

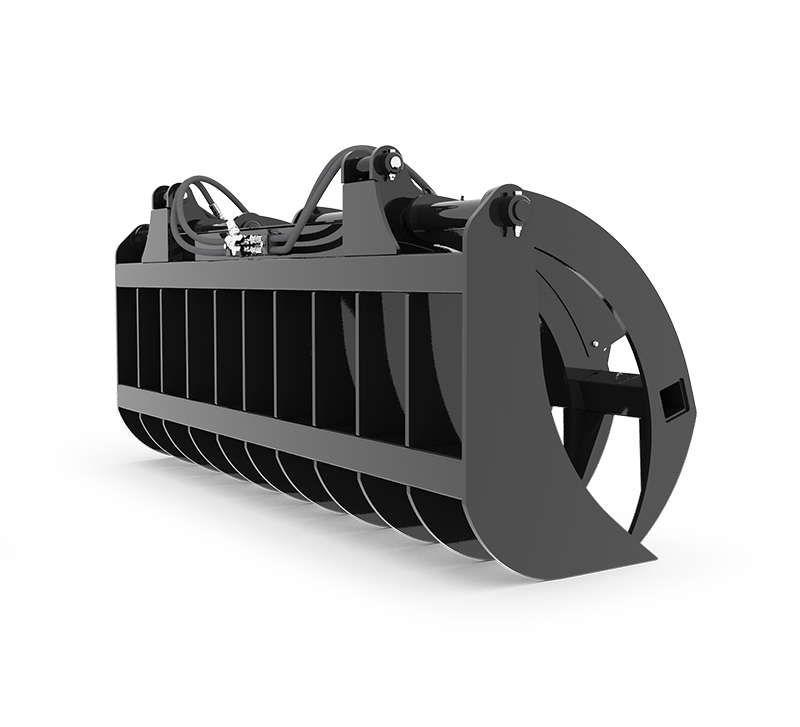

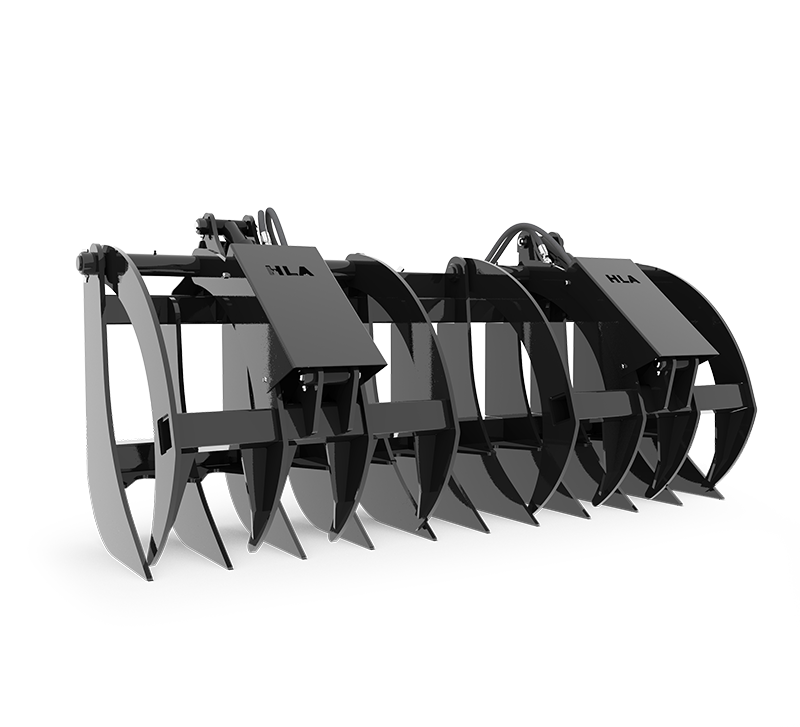

Root Rake c/w Grapple

Root Rake c/w Grapple

  • Two independent grapples for complete clamping on awkward loads
  • 34" overall height when closed
  • Points are 1/2" thick, 400 Brinell high tensile steel
  • 7-3/8" centre to centre tine spacing
  • Opens up to 48-1/2"
  • Comes with 2-1/2" x 8" cylinders
Part Number Description APPROX. WEIGHT
LBS.
RRG6666" Root Rake C/W Grapple985
RRG7878" Root Rake C/W Grapple1070
RRG8888" Root Rake C/W Grapple1125
RRG9696" Root Rake C/W Grapple1200
HK90Optional 90" Hose Kit C/W Flat Faced Couplers
HK9090Optional 90" Hose Kit C/W 90° Flat Faced Couplers
SHMKOptional Spring Hose Mount Kit
