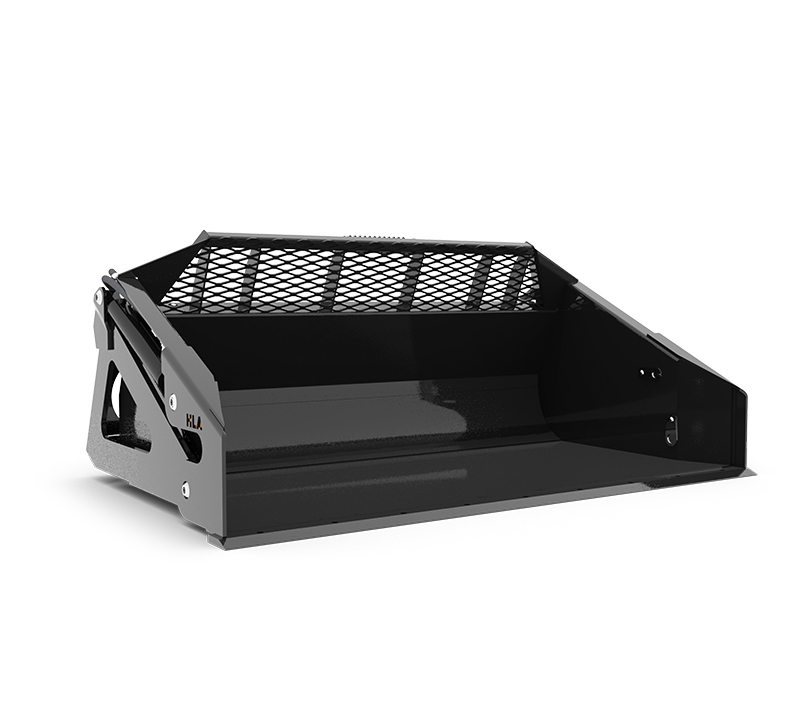

High Dump Bucket

High Dump Bucket

  • High dump bucket increases dump out height up to 48"
  • Exclusive flat bottom bucket design allows for easier clean out & no capacity sacrifice
  • Compact 28" deep, 21" high
  • Standard 39" deep, 29" high
  • HV 39" deep, 33" high
  • Soft Stop Cylinder for reduced vibration
  • Drilled for standard bolt on cutting edge
Part Number Description OUTSIDE WIDTH
INCHES
STRUCK CAP.
CU. FT.
SAE
HEAPED CAP.
CU. FT.
APPROX. WEIGHT
LBS.
HRBC3636" High Dump Bucket Compact365.36.7530
HRBC4848" High Dump Bucket Compact487.49.6595
HRBC5454" High Dump Bucket Compact548.411625
HRBC6060" High Dump Bucket Compact609.512.5655
HRB6060" High Dump Bucket Standard6017.923.2870
HRB6666" High Dump Bucket Standard6619.925.9905
HRB7272" High Dump Bucket Standard7221.928.7955
HRB7878" High Dump Bucket Standard7823.931.51050
HRB8484" High Dump Bucket Standard8425.934.31085
HRB9696" High Dump Bucket Standard9629.939.91190
HRBHV6060" High Dump Bucket High Volume6024.228.8980
HRBHV6666" High Dump Bucket High Volume6626.932.21030
HRBHV7272" High Dump Bucket High Volume7229.535.51100
HRBHV7878" High Dump Bucket High Volume7832.238.91205
HRBHV8484" High Dump Bucket High Volume8434.942.31230
HRBHV9696" High Dump Bucket High Volume9640.349.01340
HK90Optional 90" Hose Kit c/w Flat Faced Couplers
HK9090Optional 90" Hose Kit c/w 90° Flat Faced Couplers
SHMKOptional Spring Hose Mount Kit
