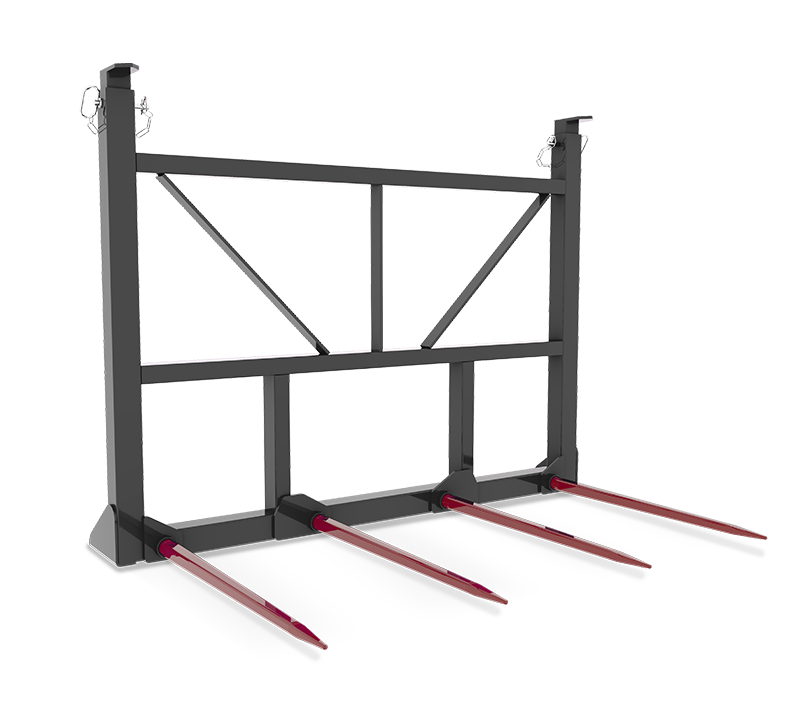

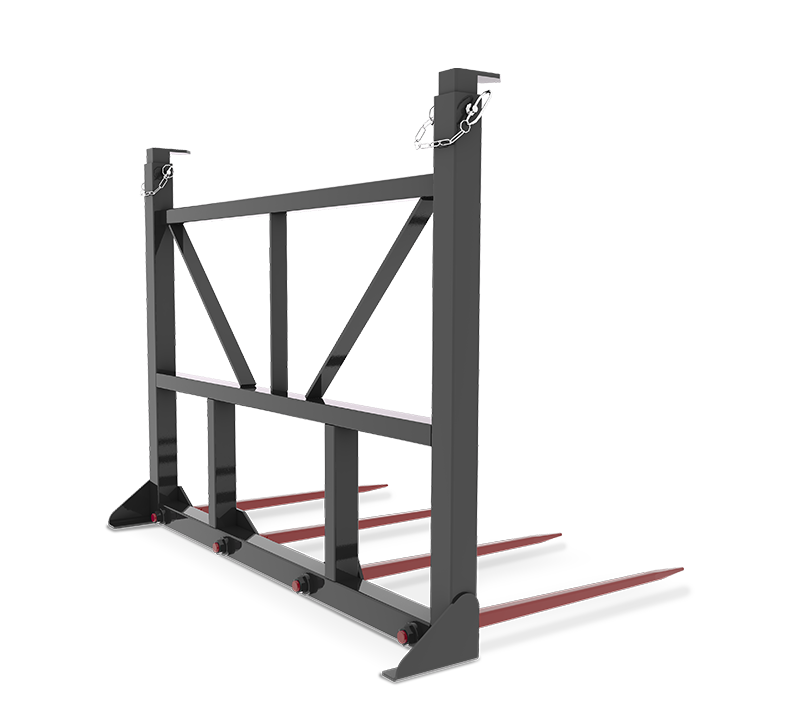

Four Prong Bale Spear c/w Adjustable Guard

Four Prong Bale Spear c/w Adjustable Guard

  • Designed specifically for carrying large 4' x 4' x 8' square bales, 2 high
  • Safety foot for roll over protection while in storage position
  • Available with 39" or 49" tines
  • Extended height of 84"
  • Retracted height of 50"
  • Frame width 66"
  • Approximate weight: 415 lbs
  • 6000 lbs capacity @ 24” L.C.
  • Kverneland tines @ 18-3/4” spacing
Part Number Description
FE5503939” Tine c/w adjustable Guard (34” useable length)
FE5504949” Tine c/w adjustable Guard (44” useable length)
