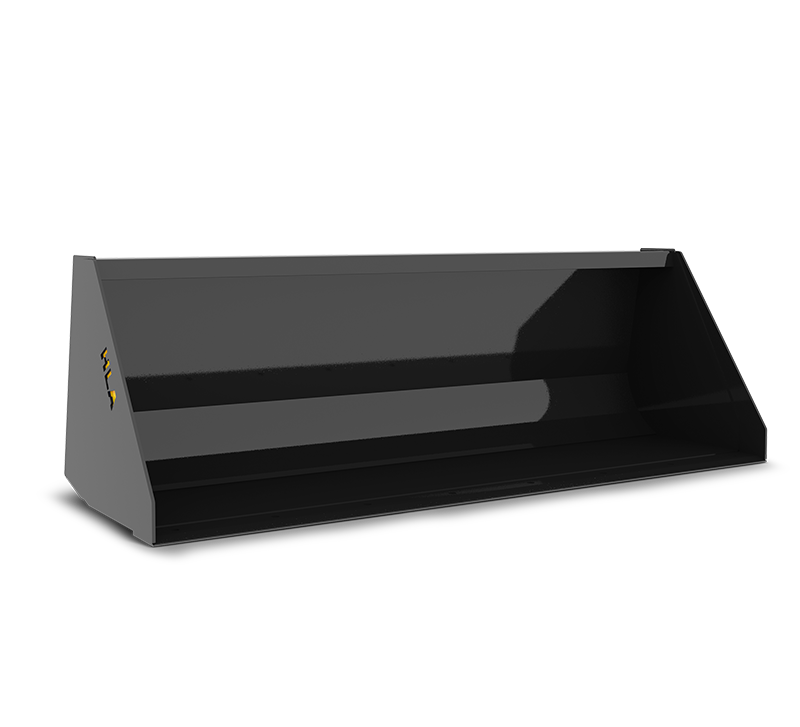

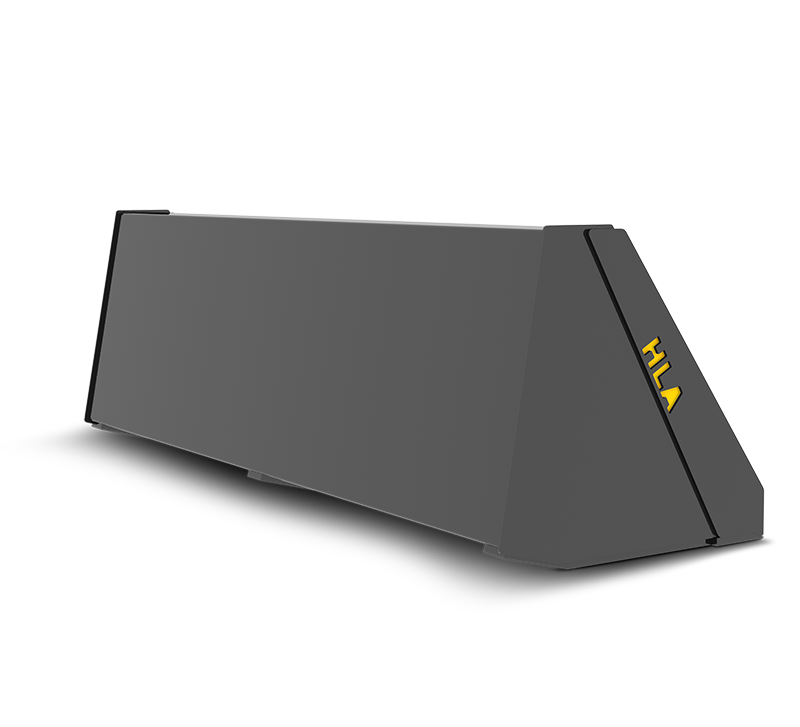

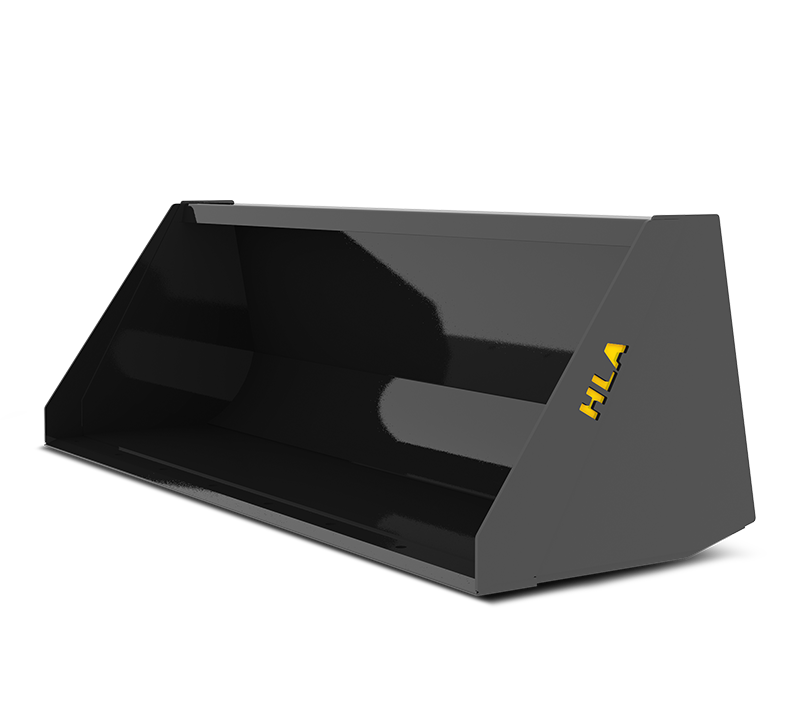

Compact Utility Bucket - Front End Loader

Compact Utility Bucket - Front End Loader

  • ⅛" material, 3/16" end plates
  • ½ X 4 bevelled cutting edge
  • 19" deep, 19" high
  • 80° slope on back of bucket
  • Reinforced round back and end plates for strength, easy filling & clean out
  • Flat top acts as level indicator
  • Drilled for standard bolt on cutting edge
Part Number Description INSIDE WIDTH
INCHES
STRUCK CAP.
CU. FT.
SAE HEAPED CAP.
CU. FT.
APPROX. WEIGHT
LBS.
MBC4242" Compact Utility Bucket425.26.6215
MBC4848" Compact Utility Bucket486.07.5230
MBC5454" Compact Utility Bucket546.78.5245
MBC6060" Compact Utility Bucket607.59.5260
MBC6666" Compact Utility Bucket668.210.5270
MBC7272" Compact Utility Bucket729.011.5290
