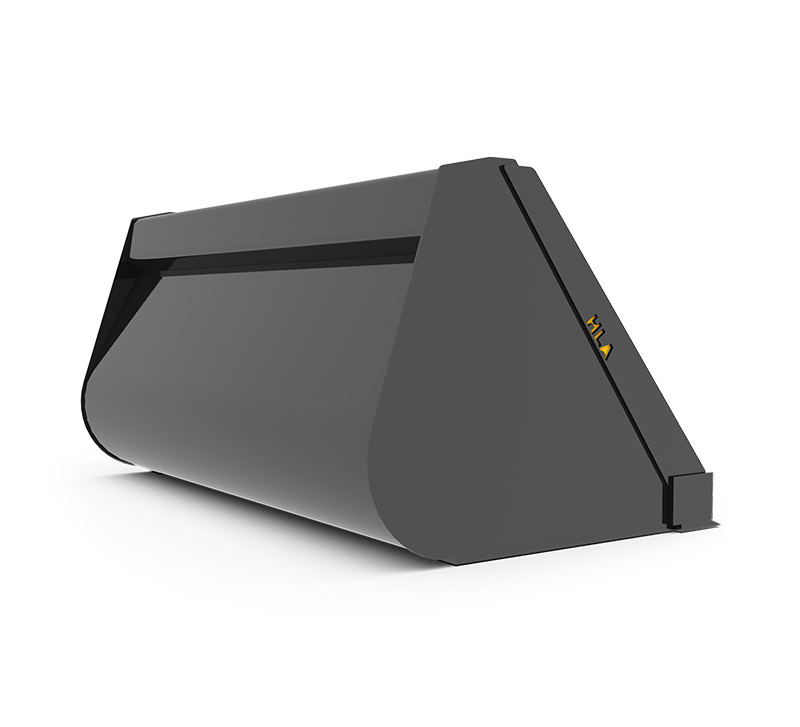

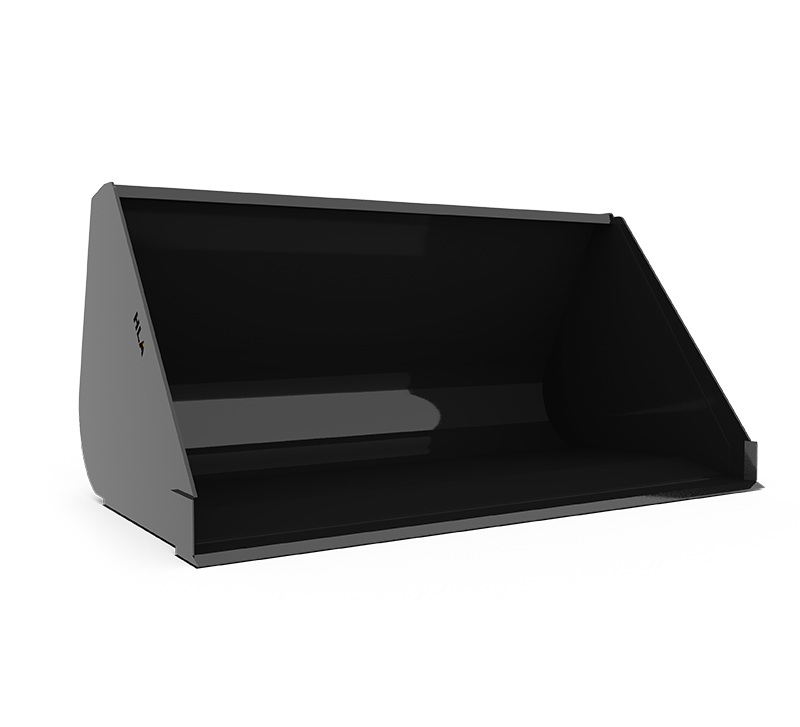

Telescopic Handler Bucket - STANDARD

Telescopic Handler Bucket - STANDARD

  • 3/16" material, ¼" end plates
  • ¾ X 6 bevelled cutting edge
  • Reinforced top lip
  • 43" deep, 35" high
  • ¾ x 8 bolt-on double bevel edge optional
  • NOTE: Add 2" to Inside Width column to calculate outside width of bucket
Part Number Description INSIDE WIDTH
INCHES
STRUCK CAP.
CU. YD.
SAE
HEAPED CAP.
CU. YD.
APPROX. WEIGHT
LBS.
THMB8484" Standard Telescopic Handler Bucket841.471.821045
THMB9696" Standard Telescopic Handler Bucket961.72.11095
THMB108108" Standard Telescopic Handler Bucket1081.892.341130
348CEBOptional 348CEB 3/4 X 8 Double Bevel Bolt On Cutting Edge c/w Bolts & Nuts
346CESBOptional 346CESB 3/4 X 6 Single Bevel Serrated Bolt On Cutting Edge c/w Bolts & Nuts
