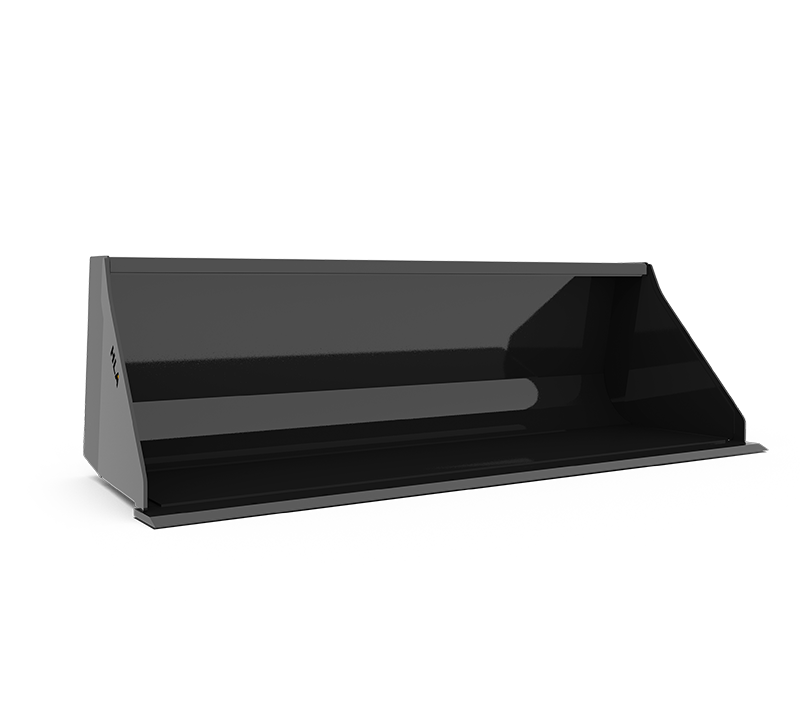

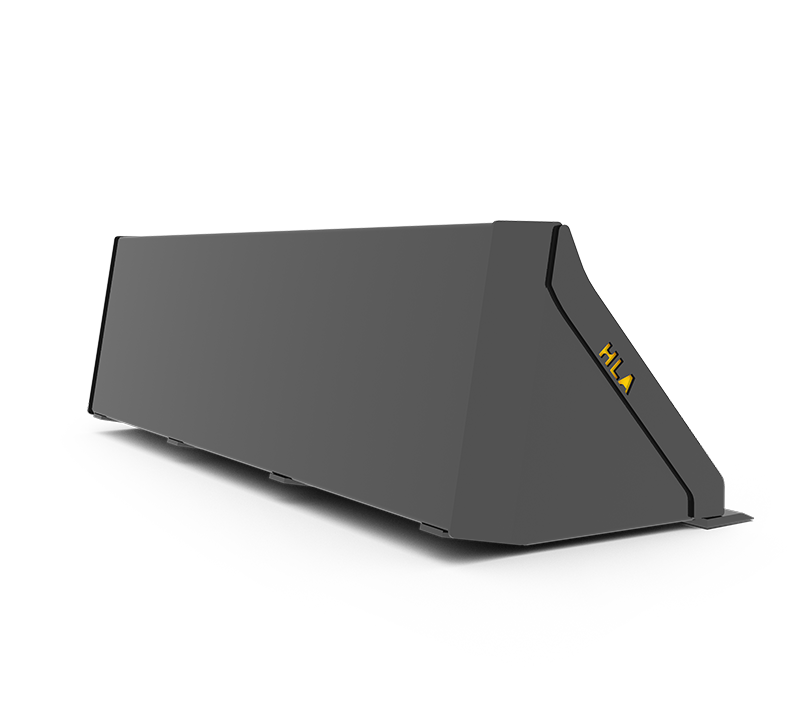

Standard Front End Loader Bucket - HEAVY DUTY

Standard Front End Loader Bucket - HEAVY DUTY

  • HEAVY DUTY
  • ¼" material, ¼" end plates
  • ¾ X 6 bevelled cutting edge
  • Reinforced top lip
  • 30" deep, 25" high
  • Reinforced round back and end plates for strength, easy filling & clean out
  • Flat top acts as level indicator
  • Tapered end plates are self-cleaning and reduces material build-up
  • NOTE: Add 2" to Inside Width column to calculate outside Width of bucket
Part Number Description INSIDE WIDTH INCHESSTRUCK CAP. CU. FT.SAE HEAPED CAP. CU. FT.APPROX. WEIGHT
LBS.
MB48HD48" Hd Standard Material Bucket4811.213.9470
MB54HD54" Hd Standard Material Bucket5412.615.8510
MB60HD60" Hd Standard Material Bucket601417.6545
MB66HD66" Hd Standard Material Bucket6615.519.4585
MB72HD72" Hd Standard Material Bucket7216.921.3630
MB78HD78" Hd Standard Material Bucket7818.323.1670
MB84HD84" Hd Standard Material Bucket8419.724.9700
MB90HD90" Hd Standard Material Bucket902126.8740
MB96HD96" Hd Standard Material Bucket9622.528.6790
MB108HD108" Hd Standard Material Bucket10825.332.3875
346CEBOptional 346CEB 3/4 X 6 Double Bevel Bolt On Cutting Edge c/w Bolts & Nuts
348CEBOptional 348CEB 3/4 X 8 Double Bevel Bolt On Cutting Edge c/w Bolts & Nuts
346CESBOptional 346CESB 3/4 X 6 Single Bevel Serrated Bolt On Cutting Edge c/w Bolts & Nuts
RTMBKOptional RTMBK Knock On Ripper Teeth c/w Weld On Adapter & Flex Pin
