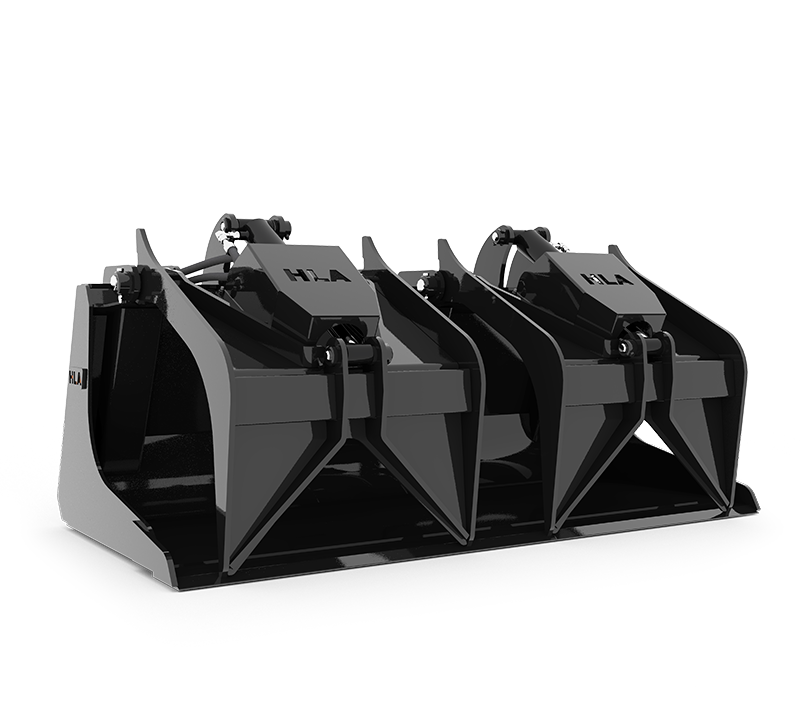

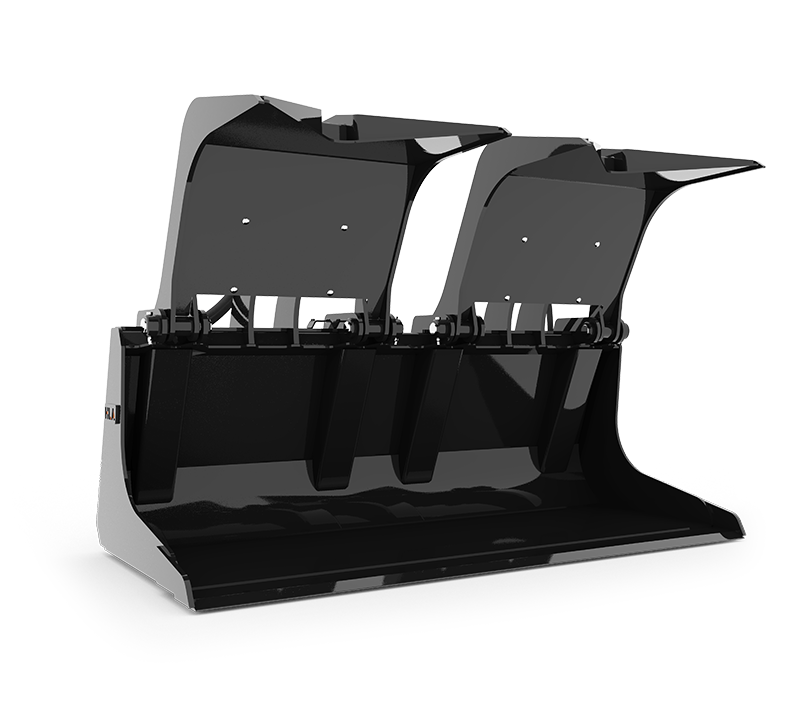

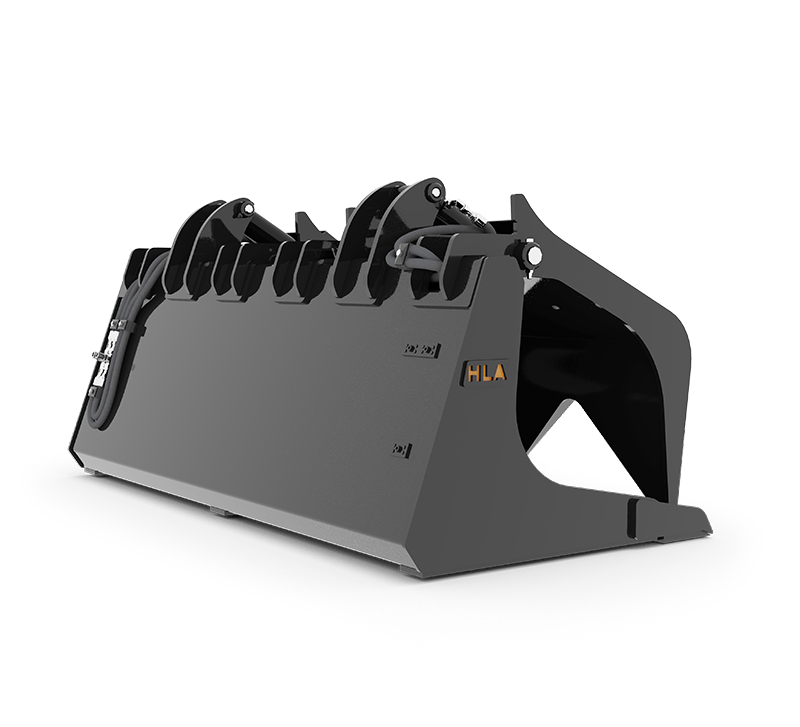

Scrap Grapple Bucket
- Two independent grapples
- 1/4" material, 3/8" end plates
- 3/4 X 6 bevelled cutting edge
- Ideal for awkward abrasive loads
- 31" overall height
- 34" overall depth
- Comes with 2-1/2" x 8" cylinders
- Drilled for standard bolt on cutting edge
| Part Number | Description | INSIDE WIDTH INCHES | STRUCK CAP. CU. FT. | SAE HEAPED CAP. CU. FT. | APPROX. WEIGHT LBS. |
|---|---|---|---|---|---|
| SGB54 | 54" Scrap Grapple Bucket | 54 | 11.9 | 15.3 | 1000 |
| SGB60 | 60" Scrap Grapple Bucket | 60 | 13.2 | 17.1 | 1040 |
| SGB66 | 66" Scrap Grapple Bucket | 66 | 14.5 | 18.9 | 1080 |
| SGB72 | 72" Scrap Grapple Bucket | 72 | 15.9 | 20.7 | 1120 |
| SGB78 | 78" Scrap Grapple Bucket | 78 | 17.2 | 22.5 | 1165 |
| SGB84 | 84" Scrap Grapple Bucket | 84 | 18.2 | 24.2 | 1200 |
| SGB96 | 96" Scrap Grapple Bucket | 96 | 20.9 | 29.9 | 1290 |
| THSGB84 | 84" Telehandler Scrap Grapple Bucket | 84 | 37.8 | 48.8 | 1955 |
| THSGB96 | 96" Telehandler Scrap Grapple Bucket | 96 | 43.2 | 54.0 | 2055 |
| 346CEB | 3/4 X 6 Double Bevel Bolt On Cutting Edge c/w Bolts & Nuts (SGB and SGBC only) | ||||
| 348CEB | 3/4 X 8 Double Bevel Bolt On Cutting Edge c/w Bolts & Nuts | ||||
| 346CESB | 3/4 X 6 Single Bevel Serrated Bolt On Cutting Edge c/w Bolts & Nuts | ||||
| SGBEPK | Bolt on endplates for SGB | ||||
| THSGBEPK | Bolt on endplates for THSGB | ||||
| HK90 | Optional 90" Hose Kit c/w Flat Faced Couplers (high dump only) | ||||
| HK9090 | Optional 90" Hose Kit c/w 90° Flat Faced Couplers (high dump only) | ||||
| SHMK | Optional Spring Hose Mount Kit (high dump only) |
