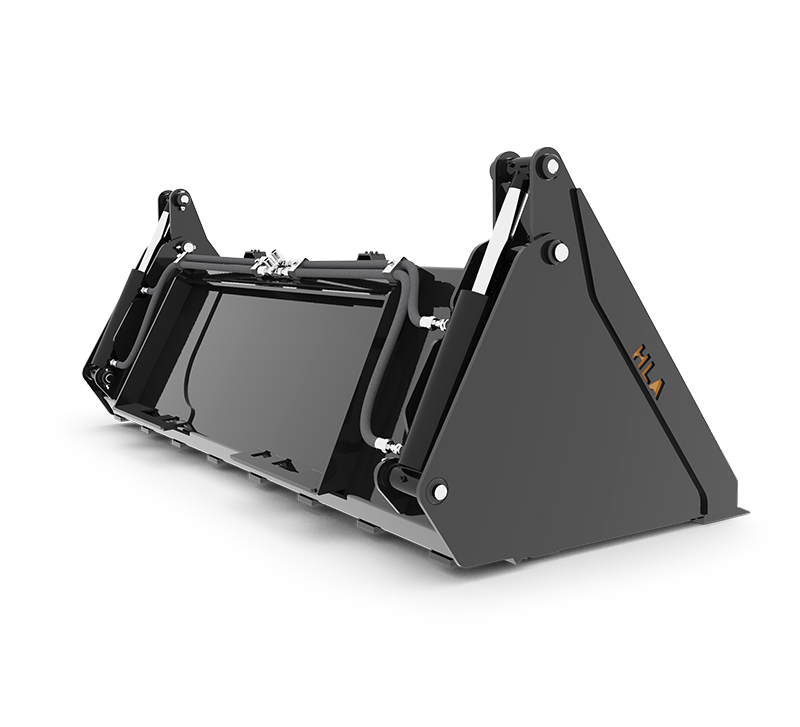

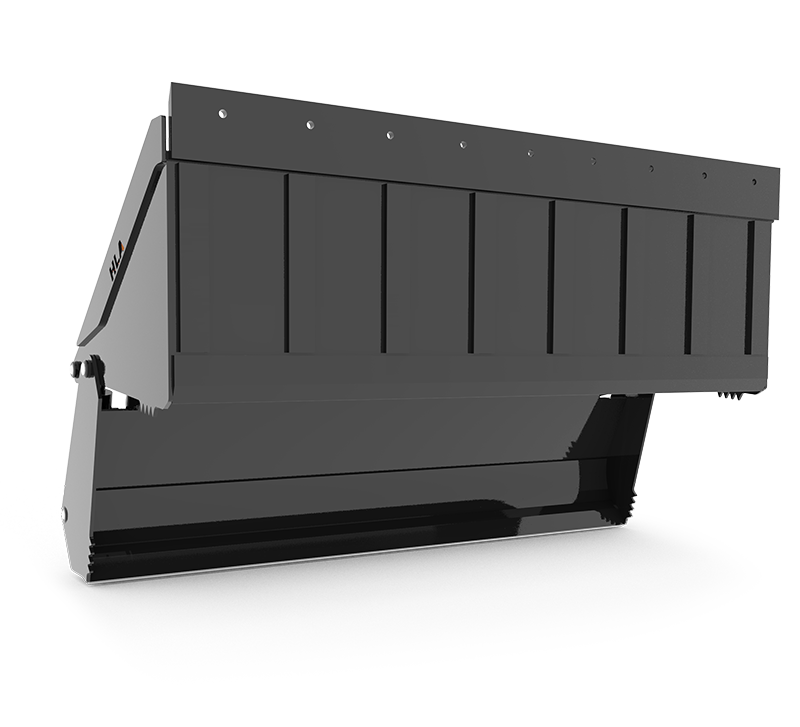

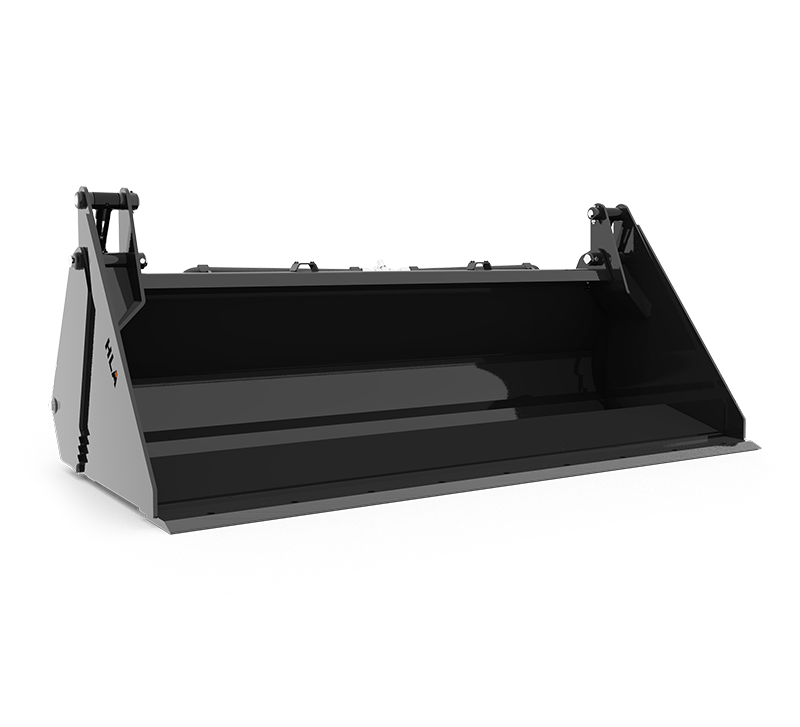

4 - IN - 1 Bucket

4 - IN - 1 Bucket

  • Includes 2-½"x 8" cylinders
  • Main bucket material ¼"
  • ⅜" end plates
  • ⅜" clam floor bottom
  • Skidsteer - 29" deep, 20" high
  • Loader - 33" deep, 26" high
  • NOTE: Add 2" to Inside Width column to calculate outside width of bucket
Part Number Description INSIDE WIDTH
INCHES
STRUCK CAP.
CU. FT.
SAE
HEAPED CAP.
CU. FT.
APPROX. WEIGHT
LBS.
SBFNO6666" Skidsteer 4-In-1 Bucket6610.612.8880
MBFNO6666" 4 - In - 1 Loader Bucket6615.7201015
SBFNO7272" Skidsteer 4-In-1 Bucket7211.615.1935
MBFNO7272" 4 - In - 1 Loader Bucket7217.121.91020
SBFNO7878" Skidsteer 4-In-1 Bucket7812.516.4980
MBFNO7878" 4 - In - 1 Loader Bucket7818.523.81130
SBFNO8484" Skidsteer 4-In-1 Bucket8413.517.71040
MBFNO8484" 4 - In - 1 Loader Bucket842025.71195
HK90Optional 90" Hose Kit C/W Flat Faced Couplers
SHMKOptional Spring Hose Mount Kit
