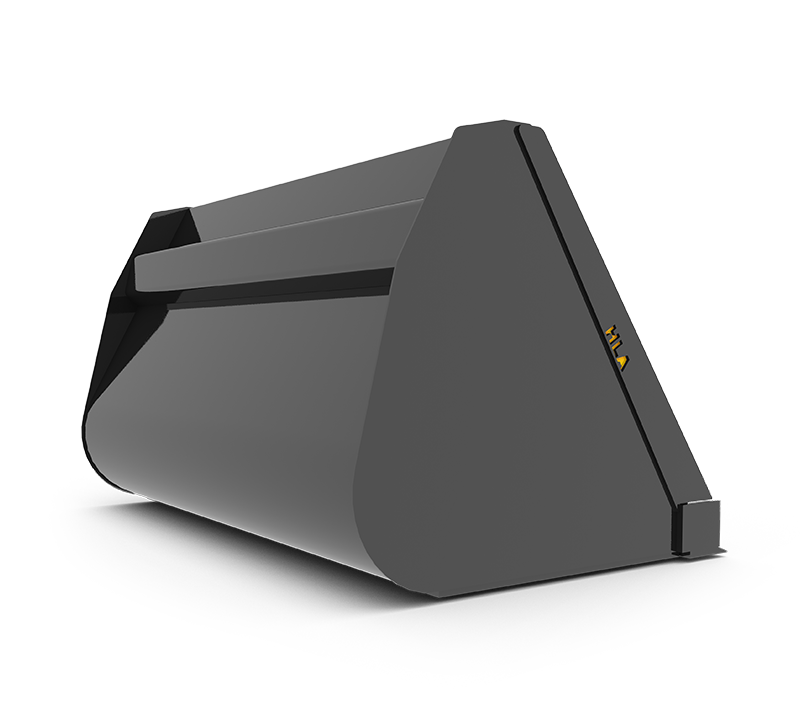

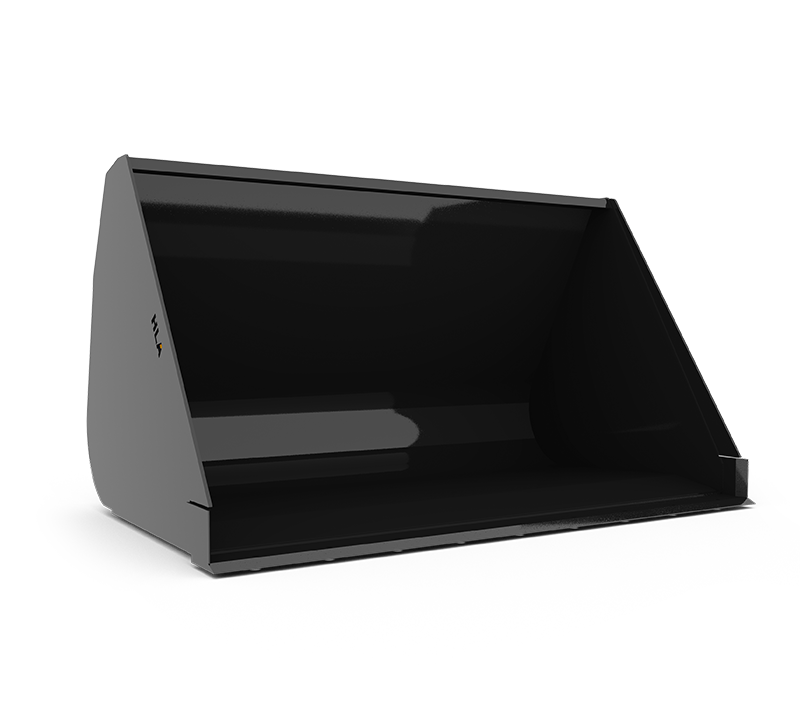

Telescopic Handler Bucket - HIGH VOLUME

Telescopic Handler Bucket - HIGH VOLUME

  • ¼" material, ¼" end plates
  • 3/4 X 6 bevelled cutting edge
  • Reinforced top lip
  • 47" deep, 41" high
  • ¾ x 8 bolt-on double bevel edge optional
  • NOTE: Add 2" to Inside Width column to calculate outside width of bucket
Part Number Description INSIDE WIDTH
INCHES
STRUCK CAP.
CU. YD.
SAE
HEAPED CAP.
CU. YD.
APPROX. WEIGHT
LBS.
THMBHV8484" High Volume Telescopic Handler Bucket841.962.381285
THMBHV9696" High Volume Telescopic Handler Bucket962.22.71400
THMBHV108108" High Volume Telescopic Handler Bucket1082.523.061515
348CEBOptional 348CEB 3/4 X 8 Double Bevel Bolt On Cutting Edge c/w Bolts & Nuts
346CESBOptional 346CESB 3/4 X 6 Single Bevel Serrated Bolt On Cutting Edge c/w Bolts & Nuts
