SBLP66HD

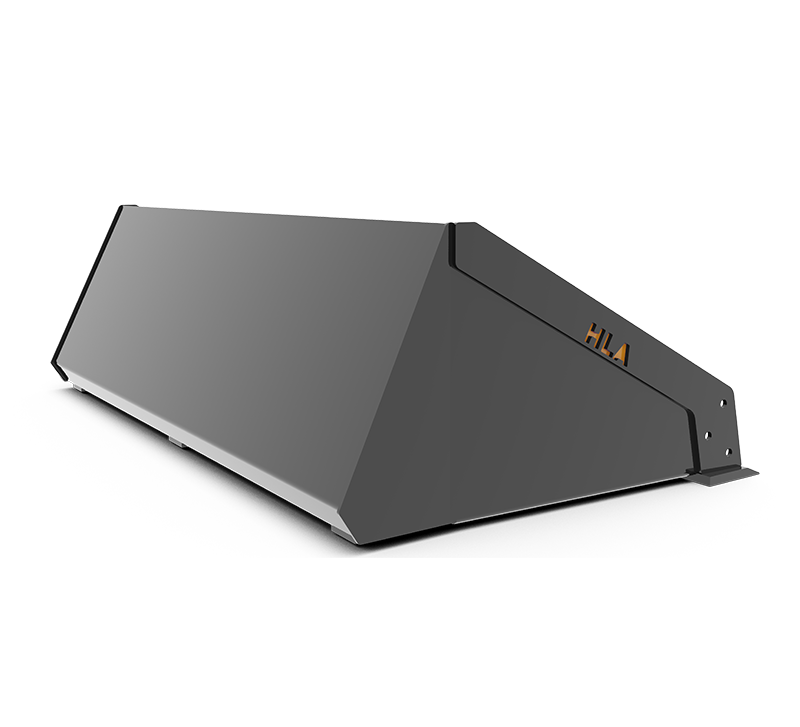

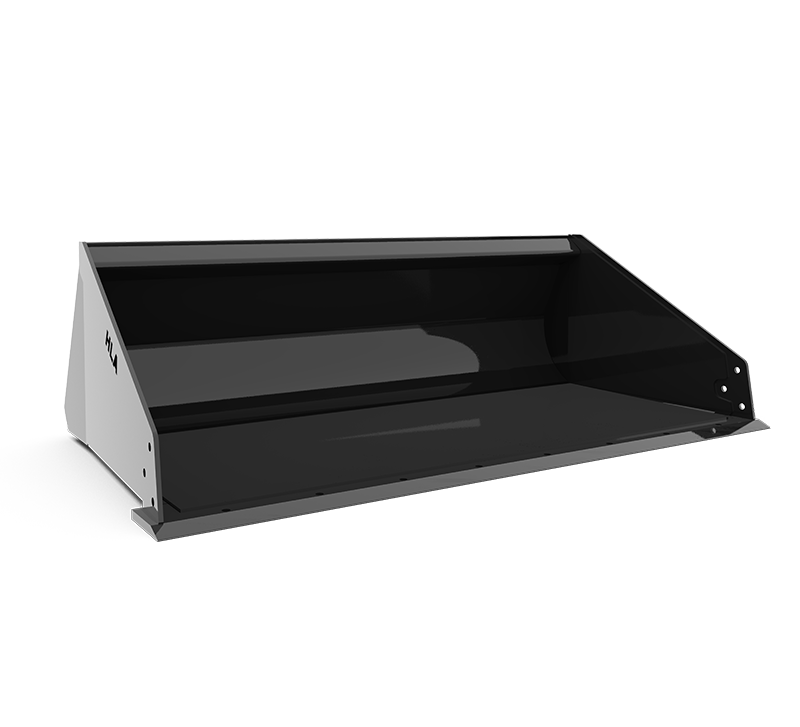

Low Profile Skidsteer Bucket - HEAVY DUTY
- Heavy duty
- 1/4" Material, 1/4" end plates;
- 3/4 X 6 bevelled cutting edge
- Reinforced top lip
- 34" deep, 19" high
- Lower back and longer base enables operator to see cutting edge of bucket
- Drilled for standard bolt on cutting edge
- Tapered end plates are self-cleaning and reduces material build-up
- Add 2" to Inside Width column to calculate outside Width of bucket
| Part Number | Description | INSIDE WIDTH INCHES | STRUCK CAP. CU. FT. | SAE HEAPED CAP. CU. FT. | APPROX. WEIGHT LBS. |
|---|---|---|---|---|---|
| SBLP48HD | 48" Hd Low Pro Skidsteer Bucket | 48 | 8.3 | 11.3 | 470 |
| SBLP54HD | 54" Hd Low Pro Skidsteer Bucket | 54 | 9.4 | 12.8 | 505 |
| SBLP60HD | 60" Hd Low Pro Skidsteer Bucket | 60 | 10.4 | 14.3 | 545 |
| SBLP66HD | 66" Hd Low Pro Skidsteer Bucket | 66 | 11.4 | 16.1 | 580 |
| SBLP72HD | 72" Hd Low Pro Skidsteer Bucket | 72 | 12.5 | 17.4 | 625 |
| SBLP78HD | 78" Hd Low Pro Skidsteer Bucket | 78 | 13.5 | 18.9 | 665 |
| SBLP84HD | 84" Hd Low Pro Skidsteer Bucket | 84 | 14.6 | 20.4 | 700 |
| SBLP96HD | 96" Hd Low Pro Skidsteer Bucket | 96 | 16.8 | 23.3 | 760 |
| 346CEB | Optional 346CEB 3/4 X 6 Double Bevel Bolt On Cutting Edge c/w Bolts & Nuts | ||||
| 348CEB | Optional 348CEB 3/4 X 8 Double Bevel Bolt On Cutting Edge c/w Bolts & Nuts | ||||
| 346CESB | Optional 346CESB 3/4 X 6 Single Bevel Serrated Bolt On Cutting Edge c/w Bolts & Nuts | ||||
| RTMBK | Optional RTMBK Knock On Ripper Teeth c/w Weld On Adapter & Flex Pin | ||||

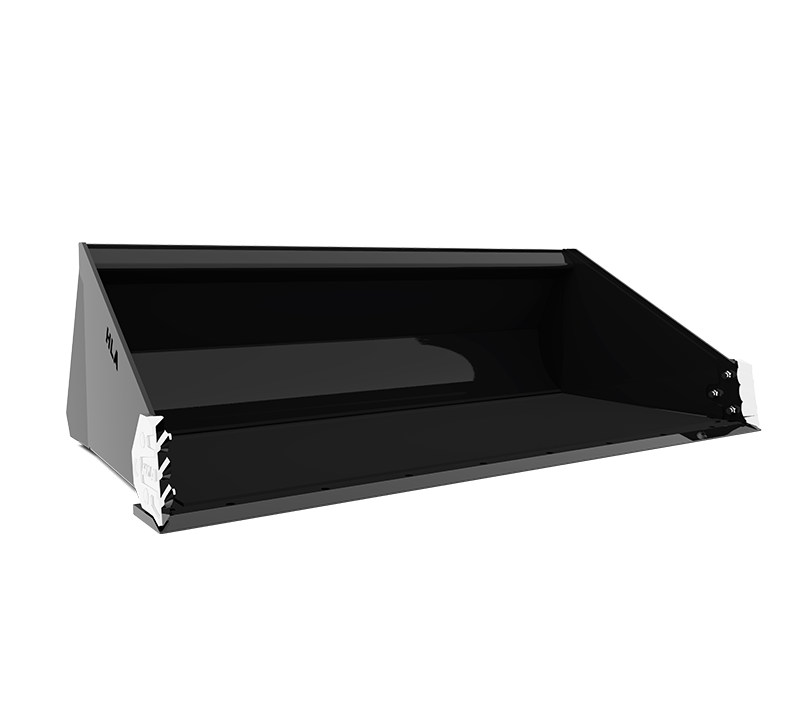

| LP103488 | Bolt On Side Cutters for SBLPHD Buckets (2025 and newer) c/w Bolts & Nuts |
