THMBHVX78

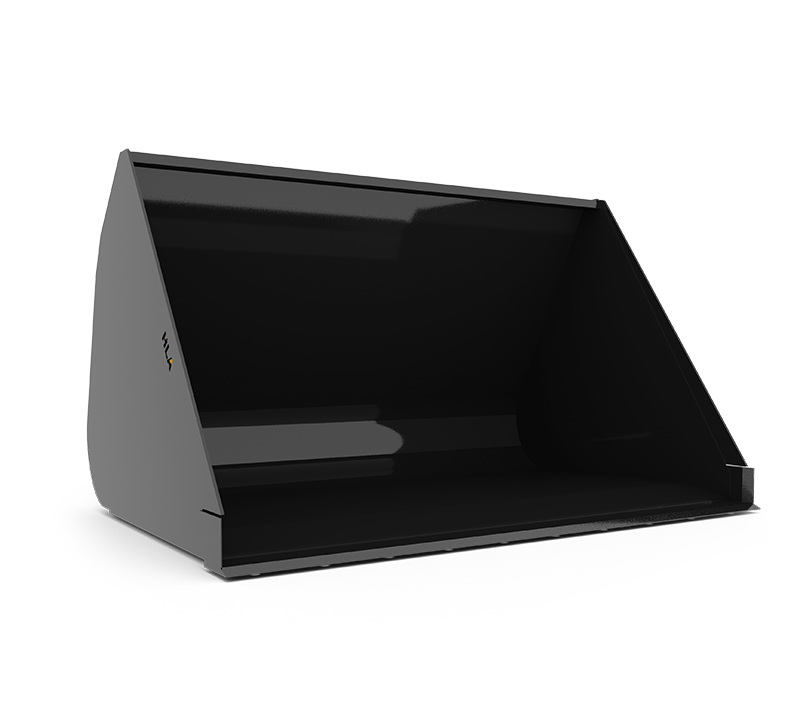

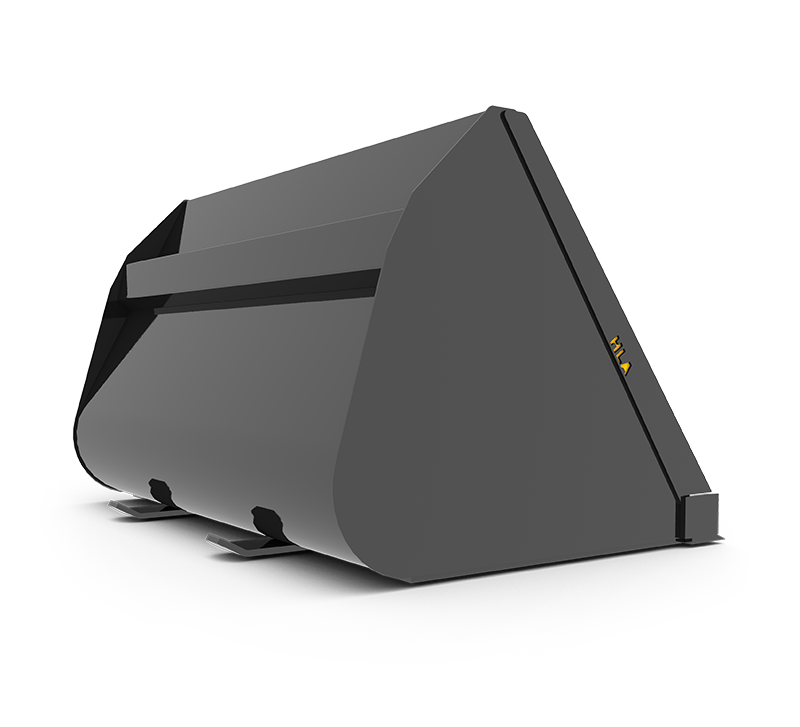

Telescopic Handler Bucket - EXTRA HIGH VOLUME
- 1/4" material, 1/4" end plates
- 3/4 X 6 bevelled cutting edge
- Reinforced top lip
- 55" deep, 46" high
- 3/4 x 8 bolt-on double bevel edge optional
- Drilled for standard bolt on cutting edge
- NOTE: Add 2" to Inside Width column to calculate outside width of bucket
| Part Number | Description | INSIDE WIDTH INCHES | STRUCK CAP. CU. YD. | SAE HEAPED CAP. CU. YD. | APPROX. WEIGHT LBS. |
|---|---|---|---|---|---|
| THMBHVX84 | 84" Extra High Volume Telescopic Handler Bucket | 84 | 2.5 | 3.1 | 1505 |
| THMBHVX96 | 96" Extra High Volume Telescopic Handler Bucket | 96 | 2.8 | 3.5 | 1640 |
| THMBHVX108 | 108" Extra High Volume Telescopic Handler Bucket | 108 | 3.2 | 4 | 1750 |
| 348CEB | Optional 348CEB 3/4 X 8 Double Bevel Bolt On Cutting Edge c/w Bolts & Nuts | ||||
| 346CESB | Optional 346CESB 3/4 X 6 Single Bevel Serrated Bolt On Cutting Edge c/w Bolts & Nuts |
